Versatile and Efficient: PowerFlex 525 AC Drives for Modern Automation

It is said that achieving the right balance between versatility and efficiency is akin to hitting a gold mine. The Allen-Bradley PowerFlex 525 AC Drive achieves this ideal by ensuring top-notch performance and adaptability within the industrial landscape.

Allen-Bradley, synonymous with innovation and reliability under the Rockwell Automation umbrella, has designed PowerFlex 525 to meet diverse needs in today’s industries. This is great for a wide range of application areas, including manufacturing and material handling; hence, it supports smooth and effective operation.

With advanced features and a user-friendly design, it has become easy to understand why this particular drive is the favorite of engineers who want to boost their productivity while saving on energy costs. Whether for modernization needs of existing systems or new projects, the PowerFlex 525 is up to meeting the demands of modern automation, and here is why:

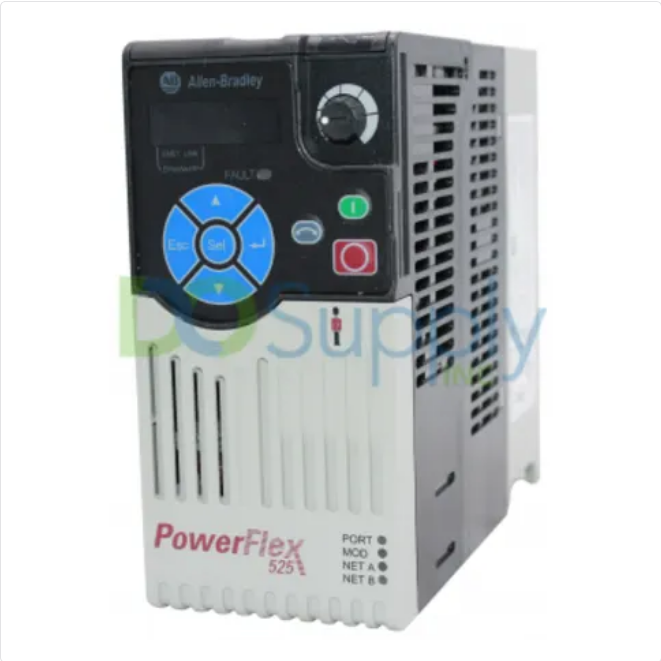

Understanding PowerFlex 525 AC Drives

The PowerFlex 525s are part of the flexible and highly reliable family of drives that control AC motors, particularly the PowerFlex 520 series. These were designed for a wide range of applications where good control over motor speed and torque, resulting in improved efficiency and increased productivity, is desired. Features of a compact, modular design ease its installation and maintenance, with an intuitive user interface for easy programming and monitoring.

Applications

PowerFlex 525 AC Drives are popular across many industries because of their flexibility and reliability. They are used in plants that manufacture equipment of all kinds, such as conveyor belts, mixers, and pumps, which should operate smoothly.

• Material Handling: These drives control the speed and torque of motors involved with AS/RS equipment, increasing material handling precision and efficiency.
• Water and Wastewater Treatment: Pumps and fans controlled by PowerFlex 525 can be applied in water and wastewater treatment to conserve energy and enhance process control.
• HVAC Systems: Drives control the speed of fans and compressors in heating, ventilation, and air conditioning systems for the least energy consumption and realization of comfortable environmental conditions.

The PowerFlex 525 AC Drives make industries experience better efficiency, which will be derived from reliable performance and precise control through the drives for lower energy costs and enhanced operational safety.

Technical Specifications

The PowerFlex 525 AC Drives are not just a technical marvel; they bring tangible benefits that can significantly enhance industrial operations. Here are some key advantages that make these drive the choice of engineers and facility managers.

Safe Torque Off (STO)

Safety is the first aspect of an automation solution in any industrial setup. PowerFlex 525 with STO functions guarantees proper functionality by providing safe drive disablement to prevent accidental machine operation, ensuring the safety of personnel and equipment. Safe torque-off functions comply with ISO 13849-1 SIL2/PLd standards, making it fit for safety-relevant applications. With STO incorporated, the dependence on extra safety apparatus can be reduced, reducing the systems and consequently hacking down on expenses.

Programming and Parameters

The most significant feature of the PowerFlex 525 is its programming power. One can include vast numbers of parameter groups in it to support the system. These include Basic Display, Basic Program, Terminal Block, Communications, Logic, Advanced Display, Advanced Program, Network, Modified, Fault and Diagnostic, AppView, and CustomView. This extensive capability provides all the fine-tuned custom details required to meet application requirements. Users can be in control of and set up monitoring for drive operations that respond appropriately to the changing environment. Programmability versatility is very high, making the PowerFlex 525 so very adaptive to many industrial processes.

USB Port for Firmware Upgrade

Using a USB port, the PowerFlex 525 provides a user with a simple firmware upgrade and parameter configuration operation. This way, setting up can be fast and easy without powering up the control module using the Mains-Free Programming feature. Engineers and technicians can easily connect to the drive using USB, streamlining the configuration process and minimizing downtime during setup and maintenance. This is more helpful in places where time is money and operational continuity is key.

Communication Options

The PowerFlex 525 boasts embedded communication options for smooth integration into industrial networks. It can support communication protocols such as DeviceNet, Dual-port EtherNet/IP, PROFIBUS DP-V1, and PROFINET. The drive is very communicative, which allows it to connect and communicate with any control system easily for easy data exchange and coordination.

Performance Specifications

The PowerFlex 525 is designed for high-performance operations. It operates in the tolerance range of -15% to +10% for voltage and 47 to 63 Hz for frequency, ensuring steady operation under varying electrical conditions. The drive’s efficiency is impressive at 97.5%, leading to energy savings and reduced operational costs. It also has several programmable stop modes, including Ramp, Coast, DC-Brake, and Ramp to Stop. The drive’s overload capability is 110% for 60 seconds and up to 150% for 3 seconds in Normal Duty, and in Heavy Duty, it can be used at 150% for 60 seconds and up to 180% for 3 seconds.

Environmental Specifications

The PowerFlex 525 is designed to have the environmental ability to operate at an altitude of up to 4000 meters, working from -20°C to +50°C without derating and up to +70°C with an optional Control Module Fan kit. This drive can also withstand relative humidity levels between 0 and 95% non-condensing. These factors make the product compliant with IEC 60068-2-27 for shock and IEC 60068-2-6:1995 for vibration.

Certifications

The PowerFlex 525 is certified to meet various international standards, reflecting high quality and reliability. The company holds its functional safety certification to ISO 13849-1 SIL2/PLd, with its embedded STO function. It also has ATEX and UKEX approvals for use in potentially explosive atmospheres with ATEX-approved motors. In addition, it holds the Lloyds Register Type Approval Certificate 12/10068(E1) and is compliant with the European RoHS Directive 2011/65/EU, reaching high environmental and safety standards.

Control and Motor Compatibility

The PowerFlex 525 is well equipped to support control methods like sinusoidal PWM, volts per hertz, sensorless vector control, economizer SVC motor control, and closed-loop velocity vector control. This flexibility in the control method allows it to manage the motor with precision and optimize performance. It can operate with many motors, such as Surface Mount, Interior Permanent Magnet Motors (with and without encoder), and Synchronous Reluctance Motors. This makes it an adaptable drive for various applications.

Operational Setup

These PowerFlex 525 AC Drives are a piece of cake to install. Installing these drives starts by selecting an appropriate mounting location with good ventilation and protection against dust and moisture. These drives can be mounted either vertically or horizontally. Being small, the units can be located conveniently in cramped spaces.

• Mounting: Secure the drive to a flat, vertical, and level surface with minimum mounting clearances as given in the manual to ensure proper cooling and ventilation.
• Wiring: Make all power and control wiring according to detailed wiring diagrams in the manual. Proper grounding should be implemented for safety and optimal performance.
• Cooling: Optional Control Module Fan kits should be used when operating in extreme temperature environments to supplement adequate cooling.

Initial Configuration

The initial configuration after installation can be done through the USB port on-site using the MainsFree programming feature. This includes conducting firmware updates and parameter settings without turning on the control module’s power.

• Parameter Setup: The Quick Start Guide in the manual provides easy access to setting all the drive parameters. Detailed customization is possible because PowerFlex 525 enables a large number of parameter groups.
• Communication Setup: Set up communication using a preferred protocol such as EtherNet/IP, DeviceNet, or PROFIBUS for easy integration with existing control systems.

Programming and Parameters

The PowerFlex 525 avails full programming capabilities through multiple parameter groups. Examples include:

• Basic Display and Program: This allows for initial configuration and basic operations.
• Terminal Block and Communications: These set up the I/O terminals and the network communications.
• Logic and Advanced Display: They allow advanced control functions and detailed monitoring.
• Fault and Diagnostic: This assists in effective error management and troubleshooting.

Maintenance and Troubleshooting

The drives need some routine maintenance to achieve long-term reliability. The user manual contains a detailed schedule. In general:

• Visual Inspections: Ensure no dust, debris, or wear. Make sure all electrical connections are tight.
• Cooling System: Clean cooling fans and heat sinks to avoid overheating.

Troubleshooting Common Problems

The PowerFlex 525 is embedded with built-in diagnostics that fully diagnose the problem or fault and immediately correct it.

• Fault Codes: The drive displays fault codes, which indicate a specific issue, such as overvoltage, undervoltage, or motor overload. The manual lists the available fault codes and their explanations.
• Built-in Diagnostic Tools: Diagnostic tools should be used to monitor drive performance, even before symptoms of impending problems that could spell disaster for the system appear.
• Support Resources: The manual includes precise troubleshooting steps and other support, such as online support and service centers.

Operational Efficiency

Drive settings must be configured according to the application’s specific needs for maximum performance. Fine-tuning parameters such as acceleration and deceleration times, torque restrictions, and speed settings can significantly enhance drive operation efficiency and make it more responsive.

Energy Management

Utilize the drives’ energy-monitoring features for energy management. Implementing energy management initiatives, such as reducing idle time and slowing down, can help save costs and promote sustainability.

To be able to understand and control the operational features of the PowerFlex 525 AC Drives properly, it will arm users with its benefits to ensure dependable and efficient performance in a variety of industrial applications.

Final Thoughts

The Allen-Bradley PowerFlex 525 AC Drives are designed to be powerful and flexible in today’s industrial automation. These drives combine robust performance specifications, advanced features, and extensive safety mechanisms to meet the diversified needs of many different industries. From water treatment and HVAC to discrete manufacturing and material handling, this drive is at the forefront of reliability, efficiency, and user-friendly design.

One of the strengths of the PowerFlex 525 is its accurate motor control, which increases the performance and life of the equipment. At the same time, the drive’s energy efficiency characteristics reduce operation costs and support environmental sustainability. Elaborate safety features include the Safe Torque-Off functionality, which guarantees the safety of both personnel and machinery for safe power applications.

It is pretty easy to set up a PowerFlex 525 because the drive has a modular design, compact design, and a friendly program interface. It can be set up easily with a USB port and MainsFree programming feature to save time and reduce downtime for better productivity. With lots of communication opportunities, this drive will easily integrate into any given industrial network to provide effective data exchange and system coordination.

This further proves the flexibility and reliability of the PowerFlex 525, considering its operation in a variety of environmental conditions and its consistency with international standards. This drive offers strong and flexible solutions to optimize existing systems or new installations in ever-changing industrial automation needs.

In short, the PowerFlex 525 AC Drives present an attractive combination of performance, efficiency, and safety. Their advanced features and flexible design provide a solution for operational excellence in modern industrial environments. Industries that choose PowerFlex 525 gain added value with enhanced automation processes, energy management, and safety and reliability of operation.
