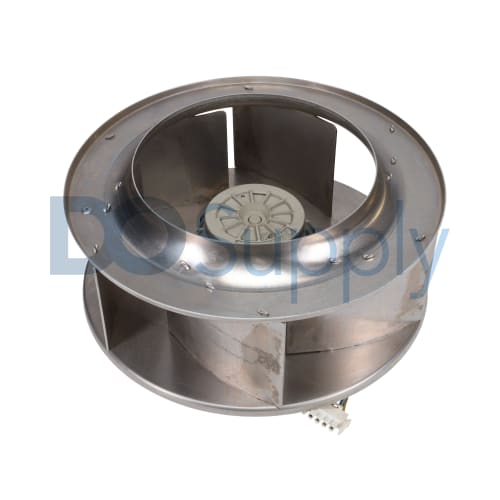

Allen Bradley 1336 Adjustable 1336-FAN-SP4B

Product image is representative; revision or series may vary. Contact us to request a specific version.

1336-FAN-SP4B

|
Need a Specific Revision?

The 1336-FAN-SP4B heatsink fan assembly by Allen Bradley is designed to effectively cool G and H frame configurations. It operates at a voltage of 230 VAC and is capable of providing airflow between 300 and 600 CFM, facilitating efficient thermal management in various applications.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1336-FAN-SP4B

ManufacturerAllen Bradley
Product TypeHeatsink Fan Assembly
Product Line1336 Adjustable
Part Number1336-FAN-SP4B
UPC662453929408
Weight9.00 lbs (4.08 kg)
Frame CompatibilityG and H Frame
Voltage Rating230 VAC
Mounting PositionBottom
Ambient Temperature0 to 40°C
Humidity Tolerance5% to 95% (non-condensing)
Capacitor TypeCHB1 capacitor
Speed Rating2000–3000 RPM
Current Draw1 A–2 A
Airflow300–600 CFM
Installation Altitude1000 m, without derating
Storage TemperatureUp to 85°C
View as PDF
Request a Repair

The Allen Bradley 1336-FAN-SP4B is an essential heatsink fan assembly made for use in G and H frame setups. Operating on a voltage of 230 VAC, this component is engineered to ensure proper cooling for various electronic applications. It offers airflow capabilities ranging from 300 to 600 cubic feet per minute (CFM), which is crucial for maintaining optimal operating conditions for equipment.

The fan assembly's operational speed falls between 2000 and 3000 RPM, while its current consumption varies from 1 A to 2 A, depending on operational demands. This unit is designed to work effectively in ambient temperatures ranging from 0 to 40 degrees Celsius. Additionally, it can withstand humidity levels of 5% to 95% (non-condensing).

For installation, the fan is mounted from the bottom, making it suitable for various applications where space may be limited. It performs efficiently at altitudes up to 1000 meters without experiencing derating, making it versatile for use in different environments. The storage temperature tolerances reach up to 85 degrees Celsius, further enhancing its operational reliability and durability. This heatsink fan assembly also uses a CHB1 capacitor type, adding to its engineering robustness.

Revision Part #Also known as
1336-FAN-SP4B Ser A1336-FAN-SP4B/A, Series A, Rev A
Don't see your particular revision? Contact us now.
