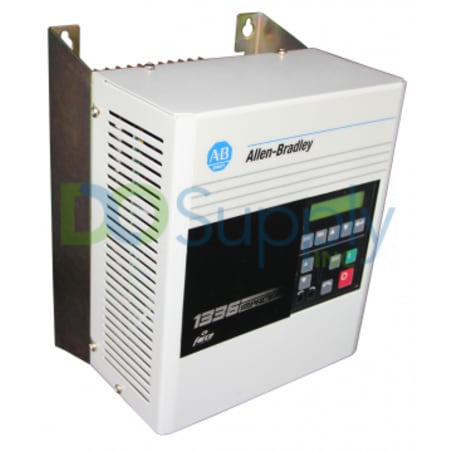

Allen Bradley 1336 IMPACT Drives 1336E-AQF15-AE-EN-HA2-L6

Product image is representative; revision or series may vary. Contact us to request a specific version.

1336E-AQF15-AE-EN-HA2-L6

|
Need a Specific Revision?

The 1336E-AQF15-AE-EN-HA2-L6 from Allen Bradley is an adjustable frequency AC drive suitable for a variety of applications. It supports a voltage rating of either 200–240 VAC or 310 VDC, delivering a horsepower capacity of 1.5 HP.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1336E-AQF15-AE-EN-HA2-L6

ManufacturerAllen Bradley
Product TypeAdjustable Frequency AC Drive
Product Line1336 IMPACT Drives
Part Number1336E-AQF15-AE-EN-HA2-L6
Weight25.00 lbs (11.34 kg)
Relative Humidity5 to 95% non-condensing
Vibration0.152 mm (0.006 inches) displacement; 1g peak
Altitude1000m (3300 ft) without derating
Voltage Rating200–240 VAC or 310 VDC
HP Rating1.5 HP
KW Rating1.2 kW
Enclosure TypeIP 20 (NEMA 1)/EMC
Language GroupEnglish/English V5.xx
HIM OptionProgrammer/Controller with Digital Pot
Control Interface Options115 VAC
Frame SizeA2 Frame
Ambient Operating Temperature0 to 40°C (32 to 104°F)
Storage Temperature-40 to 70°C (-40 to 158°F)
View as PDF
Request a Repair

The 1336E-AQF15-AE-EN-HA2-L6 is an adjustable frequency AC drive manufactured by Allen Bradley as part of the 1336 IMPACT Drives series. This model is engineered to function efficiently at voltage ratings of 200–240 VAC or 310 VDC, catering to various application needs. It has a maximum horsepower rating of 1.5 HP and a power rating of 1.2 kW, making it a robust choice for operational requirements.

Designed for stability, the drive can withstand ambient temperatures ranging from 0 to 40° C (32 to 104° F), while it is equipped for storage between -40 to 70° C (-40 to 158° F). The drive's enclosure complies with IP 20 standards (NEMA 1), providing essential protection in non-hazardous environments.

In terms of versatility, this unit can tolerate relative humidity between 5 and 95% without condensation. It additionally features a vibration displacement of 0.152 mm (0.006 inches) at a peak of 1g, ensuring reliability in operational conditions. The 1336E-AQF15-AE-EN-HA2-L6 can be installed at altitudes up to 1000 meters without derating.

For human-machine interaction, this model includes a programmer/controller with a digital potentiometer as a control interface option, operating on 115 VAC. The frame size is listed as an A2 frame, accommodating its various electronic components, and it comes with an English language group compatible with version 5.xx. Overall, this drive is well-suited for applications requiring flexible and reliable motor control solutions.

Revision Part #Also known as
1336E-AQF15-AE-EN-HA2-L6 Ser A1336E-AQF15-AE-EN-HA2-L6/A, Series A, Rev A
Don't see your particular revision? Contact us now.
