1336E-B030-AE-EN

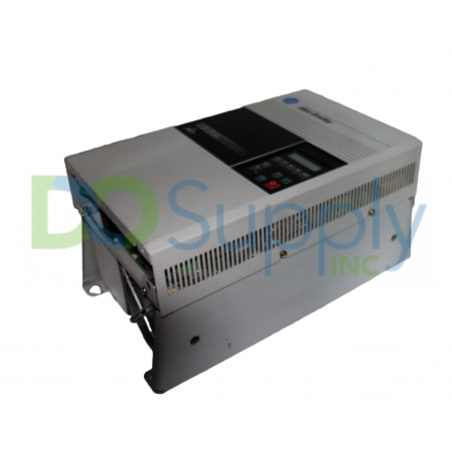

The Allen Bradley 1336E-B030-AE-EN represents a reliable adjustable frequency AC drive tailored for robust industrial usage. It supports a minimum voltage of 380 VAC and a maximum of 480 VAC, providing flexibility in various electrical configurations. With a power capacity of 22 kW, this unit is suited for diverse applications requiring adjustable motor control.

The drive is enclosed within an IP20-rated casing, classified under NEMA 1, ensuring some level of protection from external elements. For installations, it is compatible with altitudes up to 1000 meters, thereby extending its usability in high-altitude locations. The operating temperature range is set from 0 to 40°C, allowing for effective performance in typical atmospheric conditions. Additionally, it can withstand storage temperatures that swing from -40 to 70°C, supporting reliable function across a wide range of environments.

Humidity tolerance is another vital aspect of this unit, with operation capabilities in relative humidity levels of 5% to 95% (non-condensing). The drive exhibits impressive resistance against mechanical stress, demonstrating shock resilience up to 15G peak for 11 milliseconds. Furthermore, it can endure vibration levels of up to 0.006 inches (0.152 mm) displacement at a peak of 1G. This drive showcases its durability and reliability, making it well-suited for demanding industrial applications.
