1336E-BRF50-AA-EN-HA1-L6

Revisions: Ser A Ser B Ser C Ser D
Description: This 1336 PLUS II Adjustable Frequency AC drive is a 380-480VAC or 513±620VDC unit with 3.7 (5) kilowatts(horsepower) and has a(n) NEMA 1 (IP20) enclosure. This unit is in the English/English language.
In Stock Ships Today
Request a quote for 1336E-BRF50-AA-EN-HA1-L6

Description:

This 1336 PLUS II Adjustable Frequency AC drive is a 380-480VAC or 513±620VDC unit with 3.7 (5) kilowatts(horsepower) and has a(n) NEMA 1 (IP20) enclosure. This unit is in the English/English language.



Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs: We offer repair service for the 1336E-BRF50-AA-EN-HA1-L6.
Exchange: Exchange credit for your defective unit available.

To Speak to a sales representative for pricing & lead time:

phone

International
919-205-4392

Rated 4.7 with 19 reviews

    Technical Specifications for 1336E-BRF50-AA-EN-HA1-L6

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1336E-BRF50-AA-EN-HA1-L6
Voltage380 to 480 Volts AC or 513 to 620 Volts DC
kW (Horsepower)3.7 (5)
Enclosure TypeNEMA 1 (IP20)
LanguageEnglish/English
HA1Programmer/Controller with an Analog Pot
L6115 Volts AC
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 1336E-BRF50-AA-EN-HA1-L6 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336E-BRF50-AA-EN-HA1-L6 units instead of migration.

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1336E-BRF50-AA-EN-HA1-L6
Voltage380 to 480 Volts AC or 513 to 620 Volts DC
kW (Horsepower)3.7 (5)
Enclosure TypeNEMA 1 (IP20)
LanguageEnglish/English
HA1Programmer/Controller with an Analog Pot
L6115 Volts AC
Product Lifecycle Status*Discontinued/Obsolete

About 1336E-BRF50-AA-EN-HA1-L6

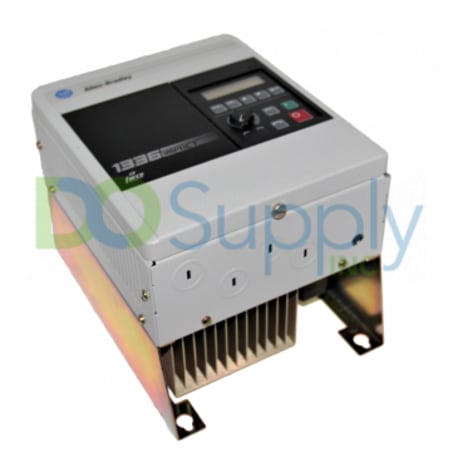

The 1336E-BRF50-AA-EN-HA1-L6 drive is a 1336 IMPACT series adjustable frequency AC drive manufactured by Allen-Bradley. It has an A3 frame, its voltage range is 380 to 480 Volts AC or 513 to 620 Volts DC, its power ratings are 3.7 kilowatts and 5 Horsepower, 8 to 10 input kVA, 8.39 output kVA, 12 Amps of input current, and 10.4 Amps of output current. It has a 115 Volts AC logic control interface, 2 jog speeds, and selectable speed and torque modes that are suitable for different applications. The built-in SCANport communication option on the 1336E-BRF50-AA-EN-HA1-L6 IMPACT drive is compatible with common peripheral devices allowing for flexibility in programming, monitoring, and drive control. This drive features a programmer/controller human-machine interface with an analog potentiometer and it has 11 fully customizable function blocks. This drive can take speed commands from different sources while allowing each source to “own” a command exclusively.

Unlike standard AC drives, the 1336E-BRF50-AA-EN-HA1-L6 IMPACT drive meets the requirements of the most demanding applications that are usually reserved for DC drives. Its high-bandwidth velocity regulator offers accurate speed regulation and its Force Technology is second to none in terms of torque performance. The enclosure type of this drive is IP20 (NEMA 1) and it has a removable English language module. The 1336E-BRF50-AA-EN-HA1-L6 IMPACT drive has powerful diagnostics capabilities. It reports fault conditions through status indicators, alarms, and the operator interface. It has 32 message fault buffers and 32 message warning buffers, and the drive connects directly to 3-phase power supplies that match its ratings without the need for line reactors or transformers.

Repair Services for 1336E-BRF50-AA-EN-HA1-L6

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your 1336E-BRF50-AA-EN-HA1-L6. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions for 1336E-BRF50-AA-EN-HA1-L6

Please refer to the manual for more information about the 1336E-BRF50-AA-EN-HA1-L6 such as the wiring diagrams, data sheets, firmware information and migration or obsolescence details.

Revision Part # Also Known as Availability
1336E-BRF50-AA-EN-HA1-L6 Ser A
1336E-BRF50-AA-EN-HA1-L6/A, Series A, Rev A Request Quote
1336E-BRF50-AA-EN-HA1-L6 Ser B
1336E-BRF50-AA-EN-HA1-L6/B, Series B, Rev B Request Quote
1336E-BRF50-AA-EN-HA1-L6 Ser C
1336E-BRF50-AA-EN-HA1-L6/C, Series C, Rev C Request Quote
1336E-BRF50-AA-EN-HA1-L6 Ser D
1336E-BRF50-AA-EN-HA1-L6/D, Series D, Rev D Request Quote
