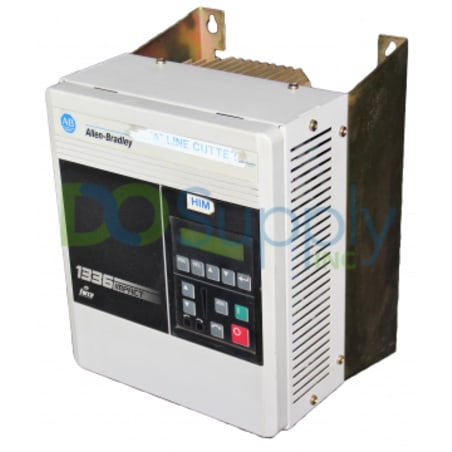

Allen Bradley 1336 IMPACT Drives 1336E-BRF50-AA-EN-L6

Product image is representative; revision or series may vary. Contact us to request a specific version.

1336E-BRF50-AA-EN-L6

|
Need a Specific Revision?

The 1336E-BRF50-AA-EN-L6 Impact Digital AC Drive is an adjustable frequency AC drive with a 380 to 480 Volts AC input voltage rating and an enclosure with a NEMA Type 1 (IP 20) protection rating. This drive has English as the default language option.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1336E-BRF50-AA-EN-L6

ManufacturerAllen Bradley
CategoryDrives
Product Line1336 IMPACT Drives
Part Number1336E-BRF50-AA-EN-L6
Weight12.00 lbs (5.44 kg)
DescriptionMicroprocessor AC Drive
Voltage380 to 480 Volts AC
Input Current12.0 Amps
Output Current10.4 Amps
Nominal Power Rating5.0 Horsepower
Output KVA7.2 KVA
Language OptionEnglish
HIMNone
L-Option115 Volts AC without Encoder
Protection RatingNEMA Type 1 (IP20)
Application TypeConstant Torque Load
Max. Short-circuit Rating200,000 Amps RMS
Product Lifecycle Status*Discontinued/Obsolete

* The Allen Bradley 1336E-BRF50-AA-EN-L6 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336E-BRF50-AA-EN-L6 units instead of migration.

Request a Repair

The 1336E-BRF50-AA-EN-L6 Impact Digital AC Drive is a microprocessor field-oriented control AC drive from Allen-Bradley, designed to give high-performance. low-cost motor control in a wide range of stand-alone applications. This drive features a "constant torque only" capability and it offers a high-performance digital speed loop that allows for precise, accurate, and repeated speed control. The 1336E-BRF50-AA-EN-L6 Drive supports both DC and AC input. It has input ranges of 513 to 620 Volts DC or 380 to 480 Volts AC, and an output power rating of 3.7 Kilowatts (5.0 Horsepower). This drive has an input current rating of 12.0 Amps and an output value of 10.4 Amps. It has a maximum short-circuit rating of 200,000 Amps RMS (when using the specified breaker) and an operational efficiency of 97.0% at the rated input. The 1336E-BRF50-AA-EN-L6 Drive offers programmable motor overload protection, ground fault monitoring, over-speed detection, programmable stall detection, and heat sink temperature monitoring as built-in protection features.

The 1336E-BRF50-AA-EN-L6 Drive provides precise and accurate control using the Field-oriented control (Vector control), current-regulated control, or sine code digital PWM control with a programmable carrier frequency. It offers a speed performance range of ±0.5% of the top-rated speed and a torque performance range of ±5% of the rated motor torque. The 1336E-BRF50-AA-EN-L6 Drive has a high overload capability, and it can provide up to 150% of the Full Load Amp (FLA) to match the motor’s extra current draw. It comes with an on-board 115 Volts AC L interface option board, which offers 9 input choices, accessible via the L-option mode. The 1336E-BRF50-AA-EN-L6 Drive has an enclosure with an IP 20 (NEMA 1) protection rating, and it has a designated operating temperature range of 0 to 40 degrees Celsius.
