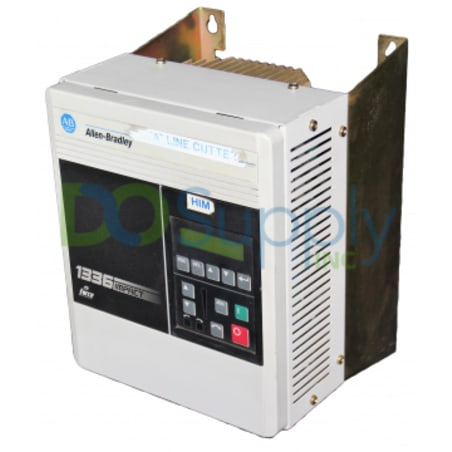

1336E-BRF50-AE-EN

Revisions: Ser A
Description: The 1336E-BRF50-AE-EN is a product of Allen-Bradley that belongs to the bulletin 1336 Impact adjustable frequency AC Drive. It has a rated Input voltage of 380 - 480VAC, 3 Phase or 513±620VDC with an output power of 5.0 Horsepower and NEMA 1 / IP20 / EMC protection rating.
Available Now
Request a quote for 1336E-BRF50-AE-EN

Description: The 1336E-BRF50-AE-EN is a product of Allen-Bradley that belongs to the bulletin 1336 Impact adjustable frequency AC Drive. It has a rated Input voltage of 380 - 480VAC, 3 Phase or 513±620VDC with an output power of 5.0 Horsepower and NEMA 1 / IP20 / EMC protection rating.

Preowned

Includes a 1-Year DO Supply warranty.

DO Supply is not an authorized distributor for Allen Bradley.

top legal disclaimer
disclaimer
credit cards
better business bureau
Revisions: Ser A

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via UPS, DHL, and TNT
Repairs: We offer repair service for the 1336E-BRF50-AE-EN.
Exchange: Exchange credit for your defective unit available.
Conditions: We sell preowned surplus and refurbished parts.

To speak to a sales representative for pricing & lead time:


Rated 4.6 with 7 reviews

    Technical Specifications for 1336E-BRF50-AE-EN

BrandAllen-Bradley
kW (Horsepower)3.7 (5)
Part Number/Catalog No.1336E-BRF50-AE-EN
Enclosure TypeIP 20 (NEMA Type 1) / EMC
LanguageEnglish
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 1336E-BRF50-AE-EN has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336E-BRF50-AE-EN units instead of migration.

BrandAllen-Bradley
kW (Horsepower)3.7 (5)
Part Number/Catalog No.1336E-BRF50-AE-EN
Enclosure TypeIP 20 (NEMA Type 1) / EMC
LanguageEnglish
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 1336E-BRF50-AE-EN has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336E-BRF50-AE-EN units instead of migration.

s

About 1336E-BRF50-AE-EN

The 1336E-BRF50-AE-EN is an Impact drive designed with Force Technology for implementing speed and Torque control of an AC motor.

This electronic equipment that is manufactured by American brand Allen-Bradley is power by an input voltage of 380-480VAC, 3-Phase or 513 to 620VDC along an Apparent Power of 11.57 kVA and current of 12.0 amperes. The drive’s output capabilities are Apparent power of 7.17 kVA, 10.4 amperes, 0 to 240kHz frequency and sinusoidal Pulse Width modulation (PWM) output waveform.

This adjustable frequency AC drive is equipped with an SCANport communication terminal. It allows the drive to connect to Remote I/O networks through a gateway such as 1336-GM1 or 1336-GM6 module that attached directly to drive. These gateways enable the feature of sending SCANport messages and convert it to a RIO message that will be processed by Controllers, particularly Allen-Bradley Programmable Logic Controllers (PLC). Similarly, the controllers may also send messages in RIO protocol which is then translated by the gateway to be sent out to the 1336 drive as a SCANport message. Typically, the messages define the drive’s operational parameters dynamically. These messages may be configured to be sent according to the triggered routine or task within the controller’s downloaded user program. This communication port allows the drive to be operated without the Human Interface Module (HIM). Alternatively, if communication to controllers is not part of the system, the drive may be locally configured using the HIM which has several types.

This drive also has I/O devices particularly analog inputs compatible for 0 to 10VDC and 4-20 mA for use as speed reference, 0 to 10 VDC and 4-20mA output that may act as the drive’s speed feedback, Pulse input channel, Fault and Alarm contact outputs.

The Allen-Bradley 1336E-BRF50-AE-EN drive belongs to the Allen-Bradley 1336E IMPACT drive series and it has a NEMA Type 1 IP20 / EMC enclosure. It is designed with a nominal power rating of 5 Horsepower and amperage rating of 9 Amps. The drive is made with Force Technology which also features a field-oriented control method. The Force Technology provides the drive with the capability of regulating the motor flux and torque which enables the drive to deliver full torque at zero speed. The 1336E-BRF50-AE-EN drive is compact and modular and adjustable frequency AC drive equipment. The drive is designed for simple set-up for quick commissioning and immediate operation. It provides features such as quick motor tune system steps. The users of the 1336E-BRF50-AE-EN drive can load simple motor data, but the drive has a feature which allows it to have many other parameters that load automatically. This function reduces or often eliminates the need for complex motor parameter information. The drive is configured with analog and digital I/O and various other communication modules which allow the users to make communication module choices. The 1336E-BRF50-AE-EN AC drive links up to a variety of networks, making use of the same communication modules, like many other drives designed by Allen-Bradley. Plus, the drive’s Human Interface Module and graphics programming terminal works perfectly with a number of other IMPACT drives, including the 1305, 1336 PLUS, and 1336 FORCE AC drives.

Technical Description of 1336E-BRF50-AE-EN

This 1336 PLUS II Adjustable Frequency AC drive is a 380-480VAC or 513±620VDC unit with 3.7 (5) kilowatts(horsepower) and has a(n) NEMA 1 (IP20)/EMC enclosure. This unit is in the English/English language.

Repair Services for 1336E-BRF50-AE-EN

Type Lead Time Price Action
Repair Service 2-4 weeks $2256cartAdd to Cart

Our highly skilled technicians can repair your 1336E-BRF50-AE-EN. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions for 1336E-BRF50-AE-EN

Please refer to the manual for more information about the 1336E-BRF50-AE-EN such as the wiring diagrams, data sheets and migration or obsolescence details.

Revision Part # Also Known as Availability
1336E-BRF50-AE-EN Ser A
1336E-BRF50-AE-EN/A, Series A, Rev A Request Quote
Common misspellings:
  • l336E-BRF50-AE-EN
  • 1336E-8RF50-AE-EN
  • 1336E-BRF5o-AE-EN
  • 1336EBRF50AEEN

Reviews for 1336E-BRF50-AE-EN

Product Review

"The 1336E-BRF50-AE-EN adjustable frequency AC drive has lower output capabilities compared to 1336E-BRF100-AE-EN. It has 10.4 amperes and 5.0 Horsepower while the 1336E-BRF100-AE-EN has twice the output capabilities of the 1336E-BRF50-AE-EN. " -DO Supply Tech
