1336-PB-SP23C

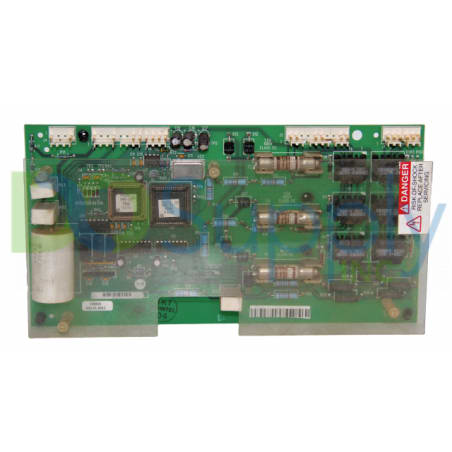

Description: The 1336-PB-SP23C board is a PCB board for the 1336 series variable frequency drives made by Allen-Bradley. It has an input voltage rating of 460 Volts AC.
In Stock Ships Today
Request a quote for 1336-PB-SP23C

Description:

The 1336-PB-SP23C board is a PCB board for the 1336 series variable frequency drives made by Allen-Bradley. It has an input voltage rating of 460 Volts AC.


Preowned

Includes a 1-Year DO Supply warranty.

DO Supply is not an authorized distributor for Allen Bradley.

top legal disclaimer
disclaimer
credit cards
better business bureau

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via UPS, DHL, and TNT
Repairs: We offer repair service for the 1336-PB-SP23C.
Exchange: Exchange credit for your defective unit available.
Conditions: We sell preowned surplus and refurbished parts.

To speak to a sales representative for pricing & lead time:


Rated 4.8 with 14 reviews

    Technical Specifications for 1336-PB-SP23C

BrandAllen-Bradley / Rockwell Automation
Series1336 PCB Boards
Part Number1336-PB-SP23C
DescriptionPrecharge PCB
Voltage460 Volts AC
Horsepower60-600 Horsepower
Temperature0-50 degrees Celsius
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 1336-PB-SP23C has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336-PB-SP23C units instead of migration.

BrandAllen-Bradley / Rockwell Automation
Series1336 PCB Boards
Part Number1336-PB-SP23C
DescriptionPrecharge PCB
Voltage460 Volts AC
Horsepower60-600 Horsepower
Temperature0-50 degrees Celsius
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 1336-PB-SP23C has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336-PB-SP23C units instead of migration.

s

About 1336-PB-SP23C

The 1336-PB-SP23C PCB board is Precharge enabled PCB board that has been designed and manufactured by Allen-Bradley. It is a spare part for the adjustable frequency AC drives from the Allen-Bradley catalog. A PCB is a printed circuit board which connects electronic components by using conductive tracks from 1 sheet made of copper laminated layers. PCB boards are found in almost all electronic devices. A Precharge PCB board is used to protect an industrial machine system and to avoid contactor failure due to high levels of inrush current from capacitors. The 1336-PB-SP23C PCB board runs with 460 Volts AC supply voltage. The output power rating of the module ranges from 60 to 600 Horsepower. The module is mounted in the drive board by using screws on the back of the board. The Precharge PCB board is used with all the Allen-Bradley 1336 series variable frequency drives.







The 1336-PB-SP23C PCB board is an electrostatic discharge sensitive part. All of the relevant static control precautions should be taken during the installation of this spare part. The installation area should be free from electrostatic discharge to prevent damage of sensitive components on the board and in the drive that it is attached to. The installation area should have a temperature range between 0 and 50 degrees Celsius with non-condensing ambient humidity. The 1336-PB-SP23C PCB board can also be considered as a protective board for the 1336 drives. The 1336 variable frequency drives are microprocessor-controlled high-performance drives that are specially designed to regulate and control 3-phase induction motors in modern industries. The operators can use the drive to adjust different drive settings for efficient output.



Repair Services for 1336-PB-SP23C

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your 1336-PB-SP23C. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.
