1336-SN-SP1B

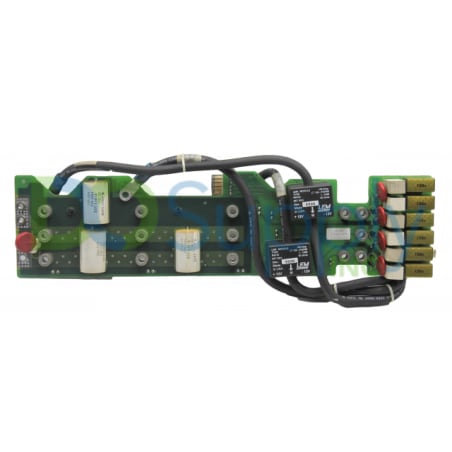

The part number 1336-SN-SP1B serves as a high-performance converter and inverter replacement snubber board kit within the Allen Bradley 1336 PCB Boards series. This component operates effectively at a voltage of 460 V, suitable for various applications. The device is rated for power capacities of either 20 HP or 30 HP, allowing flexibility in various operational settings. Constructed from FR-4 epoxy, the board maintains durability across different environments.

Connection options are versatile, featuring high-current stab or soldered leads for reliable integration into existing systems. It supports a switching frequency between 2 kHz and 8 kHz, ensuring it can accommodate varying operational requirements. The snubber board is able to endure peak vibrations of 1 G, showing resilience under typical operational conditions. Additionally, it is designed to handle shock levels reaching up to 15 G, enhancing its reliability during physical disturbances.

Operational conditions are maintained within a relative humidity range from 5% to 95% and non-condensing, safeguarding performance in moisture-prone environments. For altitude considerations, this snubber board performs optimally up to 1000 meters above sea level. Its usable temperature ranges from 0 °C to around 40 °C during operation, while it can be stored in much harsher conditions, enduring temperatures between -40 °C and +85 °C. Finally, the board's thickness is measured at 1.6 mm, and it adheres to an IP20 rating for environmental protection.
