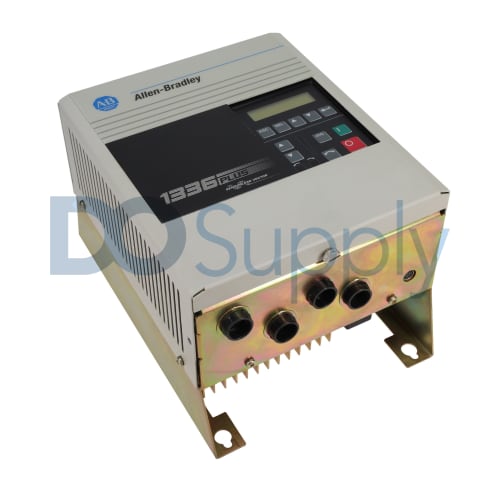

1336S-AQF05-AE-EN-HA2-L6 | Allen Bradley Drives 1336 PLUS Drives

1336S-AQF05-AE-EN-HA2-L6

Rated 4.7 with 6 reviews

DO Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with DO Supply's 1-year warranty

Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.


credit cards accepted
better business bureau

1336S-AQF05-AE-EN-HA2-L6

Revisions: Ser A
Description: This adjustable frequency drive made by Allen Bradley is a 1/2 horsepower unit. In addition, it comes with a rating of 0.37 kilowatt. This drive is a 200-240 VAC VFD and is a size A1 frame drive. This drive has an English module included on the drive. This drive has a 115V AC/DC option installed.
Available Now
Request a quote for 1336S-AQF05-AE-EN-HA2-L6

Description: This adjustable frequency drive made by Allen Bradley is a 1/2 horsepower unit. In addition, it comes with a rating of 0.37 kilowatt. This drive is a 200-240 VAC VFD and is a size A1 frame drive. This drive has an English module included on the drive. This drive has a 115V AC/DC option installed.

DO Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with DO Supply's 1-year warranty

Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

disclaimer
credit cards
better business bureau
Revisions: Ser A

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via UPS, DHL, and TNT
Repairs: We offer repair service for the 1336S-AQF05-AE-EN-HA2-L6.
Exchange: Exchange credit for your defective unit available.
Conditions: We sell preowned surplus and refurbished parts.

To speak to a sales representative for pricing & lead time:


Rated 4.7 with 6 reviews

    Technical Specifications for 1336S-AQF05-AE-EN-HA2-L6

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1336S-AQF05-AE-EN-HA2-L6
Voltage200 to 240 Volts AC or 310 Volts DC
kW (Horsepower)0.37 (0.5)
Enclosure TypeIP 20 (NEMA 1)/EMC
LanguageEnglish
HA2Snap-In Cradle/Blank Plate
L6115 Volts AC
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 1336S-AQF05-AE-EN-HA2-L6 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336S-AQF05-AE-EN-HA2-L6 units instead of migration.

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1336S-AQF05-AE-EN-HA2-L6
Voltage200 to 240 Volts AC or 310 Volts DC
kW (Horsepower)0.37 (0.5)
Enclosure TypeIP 20 (NEMA 1)/EMC
LanguageEnglish
HA2Snap-In Cradle/Blank Plate
L6115 Volts AC
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 1336S-AQF05-AE-EN-HA2-L6 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336S-AQF05-AE-EN-HA2-L6 units instead of migration.

s

About 1336S-AQF05-AE-EN-HA2-L6

The Allen-Bradley/Rockwell Automation 1336S-AQF05-AE-EN-HA2-L6 AC drive is an industrial component that offers significant improvements over competitive drives and it features the sensorless vector control that provides excellent performance. The control algorithms behind this technology ensure that the drive has an excellent starting acceleration and 250% running torque in combination with a 120:1 constant torque speed ratio. The 1336S-AQF05-AE-EN-HA2-L6 drive comes with a rich set of features for standard and special applications. The 1336S Plus drives provide high levels of reliability and flexibility through common assembly parts, configurable I/O, quiet motor operation, isolated power, improved ride-thru capability, and a DC cooling fan.



The 1336S-AQF05-AE-EN-HA2-L6 drive has an IP 20 (NEMA Type 1)/EMC enclosure and it requires a 3-phase power source with an input voltage range of 200 to 240 Volts AC or 310 Volts DC. In addition to that, the drive has a nominal power rating of 0.37 kilowatts (0.5 Horsepower) and it comes with English as its default language. Even though the 1336S-AQF05-AE-EN-HA2-L6 drive is a basic 1336S Plus drive with low power output, it includes 2 additional functions. These optional elements are the human-machine interface (HMI) and control interface. The HMI of this drive has a programmer/controller with a digital pot, while the control interface has a 115 Volts AC input voltage. The 1336S-AQF05-AE-EN-HA2-L6 drive is made for rough industrial conditions, so the drive is protected from short circuits, power interruptions, line losses, and other irregularities that could lead to equipment damage or risks for the users operating the system. Also, the drive can be utilized for applications where an unattended operation is acceptable. If power is lost due to unexpected circumstances, the drive can be adjusted to resume operation once the power is back. This is enabled through the “run on power up” feature that resets the drive automatically and sets the desired speed.



Technical Description of 1336S-AQF05-AE-EN-HA2-L6

This 1336 PLUS Adjustable Frequency AC drive is a 200-240V AC or 310V DC unit with 0.37 (0.5) kilowatts(horsepower) and has a(n) IP 20 (NEMA 1)/EMC enclosure. This unit is in the English language.

Repair Services for 1336S-AQF05-AE-EN-HA2-L6

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your 1336S-AQF05-AE-EN-HA2-L6. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions for 1336S-AQF05-AE-EN-HA2-L6

Please refer to the manual for more information about the 1336S-AQF05-AE-EN-HA2-L6 such as the wiring diagrams, data sheets and migration or obsolescence details.

Revision Part # Also Known as Availability
1336S-AQF05-AE-EN-HA2-L6 Ser A
1336S-AQF05-AE-EN-HA2-L6/A, Series A, Rev A Request Quote
Common misspellings:
  • l336S-AQF05-AE-EN-HA2-L6
  • 1336S-AQFo5-AE-EN-HA2-L6
  • 1336S-AQF05-AE-EN-HA2-16
  • 1336SAQF05AEENHA2L6

Dimensions For 1336S-AQF05-AE-EN-HA2-L6

Size
Input Type
Panel Cutout Height in mm
Panel Cutout Width in mm
Terminal Height in mm
Terminal Width in mm
Terminal Overall Depth in mm
Terminal Mounted Depth in mm

Dimensions For 1336S-AQF05-AE-EN-HA2-L6

Resolutions For 1336S-AQF05-AE-EN-HA2-L6

About

Technical Specifications for 1336S-AQF05-AE-EN-HA2-L6

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1336S-AQF05-AE-EN-HA2-L6
Voltage200 to 240 Volts AC or 310 Volts DC
kW (Horsepower)0.37 (0.5)
Enclosure TypeIP 20 (NEMA 1)/EMC
LanguageEnglish
HA2Snap-In Cradle/Blank Plate
L6115 Volts AC
Product Lifecycle Status*Discontinued/Obsolete
ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1336S-AQF05-AE-EN-HA2-L6
Voltage200 to 240 Volts AC or 310 Volts DC
kW (Horsepower)0.37 (0.5)
Enclosure TypeIP 20 (NEMA 1)/EMC
LanguageEnglish
HA2Snap-In Cradle/Blank Plate
L6115 Volts AC
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 1336S-AQF05-AE-EN-HA2-L6 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336S-AQF05-AE-EN-HA2-L6 units instead of migration.

About 1336S-AQF05-AE-EN-HA2-L6

The Allen-Bradley/Rockwell Automation 1336S-AQF05-AE-EN-HA2-L6 AC drive is an industrial component that offers significant improvements over competitive drives and it features the sensorless vector control that provides excellent performance. The control algorithms behind this technology ensure that the drive has an excellent starting acceleration and 250% running torque in combination with a 120:1 constant torque speed ratio. The 1336S-AQF05-AE-EN-HA2-L6 drive comes with a rich set of features for standard and special applications. The 1336S Plus drives provide high levels of reliability and flexibility through common assembly parts, configurable I/O, quiet motor operation, isolated power, improved ride-thru capability, and a DC cooling fan.



The 1336S-AQF05-AE-EN-HA2-L6 drive has an IP 20 (NEMA Type 1)/EMC enclosure and it requires a 3-phase power source with an input voltage range of 200 to 240 Volts AC or 310 Volts DC. In addition to that, the drive has a nominal power rating of 0.37 kilowatts (0.5 Horsepower) and it comes with English as its default language. Even though the 1336S-AQF05-AE-EN-HA2-L6 drive is a basic 1336S Plus drive with low power output, it includes 2 additional functions. These optional elements are the human-machine interface (HMI) and control interface. The HMI of this drive has a programmer/controller with a digital pot, while the control interface has a 115 Volts AC input voltage. The 1336S-AQF05-AE-EN-HA2-L6 drive is made for rough industrial conditions, so the drive is protected from short circuits, power interruptions, line losses, and other irregularities that could lead to equipment damage or risks for the users operating the system. Also, the drive can be utilized for applications where an unattended operation is acceptable. If power is lost due to unexpected circumstances, the drive can be adjusted to resume operation once the power is back. This is enabled through the “run on power up” feature that resets the drive automatically and sets the desired speed.



Technical Description of 1336S-AQF05-AE-EN-HA2-L6

This 1336 PLUS Adjustable Frequency AC drive is a 200-240V AC or 310V DC unit with 0.37 (0.5) kilowatts(horsepower) and has a(n) IP 20 (NEMA 1)/EMC enclosure. This unit is in the English language.
