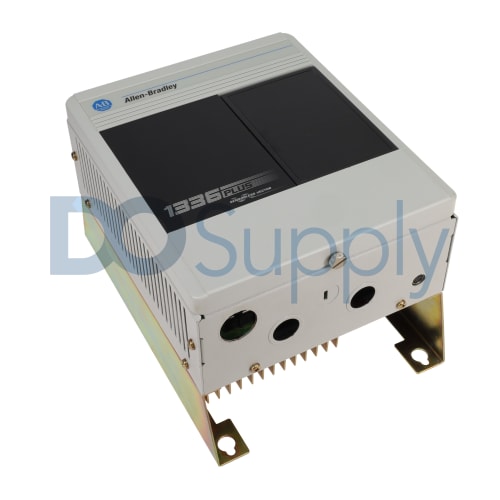

Allen Bradley 1336 PLUS Drives 1336S-AQF10-AA-EN-HAB-L6

Product image is representative; revision or series may vary. Contact us to request a specific version.

1336S-AQF10-AA-EN-HAB-L6

|
Need a Specific Revision?

The 1336S-AQF10-AA-EN-HAB-L6 is an adjustable frequency AC drive from Allen Bradley's 1336 PLUS Drives series. It operates within an AC voltage range of 200 to 240 Volts and maintains a DC voltage rating of 310 Volts, making it suitable for diverse applications.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1336S-AQF10-AA-EN-HAB-L6

ManufacturerAllen Bradley
Product TypeAdjustable Frequency AC Drive
Product Line1336 PLUS Drives
Part Number1336S-AQF10-AA-EN-HAB-L6
Weight10.00 lbs (4.54 kg)
AC Voltage Rating200 to 240 Volts AC
DC Voltage Rating310 Volts DC
Rated Frequency48 to 62 Hertz
Human Interface ModuleBlank plate
Input Current Rating5.4 Amperes
Control Interface Options115 Volts AC control interface
Output Frequency Range0 to 400 Hertz
Number of Phases3-phase
Enclosure RatingNEMA Type 1 (IP20)
Language ModuleEnglish language
Output Current Rating4.5 Amperes
Drive Efficiency97.5% at rated current
Size of FrameA1 frame
Nominal Horsepower1 horsepower (0.75 kilowatts)
View as PDF
Request a Repair

The 1336S-AQF10-AA-EN-HAB-L6, part of the Allen Bradley 1336 PLUS Drives lineup, provides advanced control capabilities for various motor-driven applications. Operating within a range of 200 to 240 Volts AC, it also accommodates a DC voltage rating of 310 Volts. This drive is particularly effective within a rated frequency of 48 to 62 Hertz, making it adaptable to numerous industrial settings.

As a 3-phase drive, it supports an output frequency range of up to 400 Hertz. The high efficiency rating of 97.5% at the rated current contributes to effective energy utilization. An input current rating of 5.4 Amperes and an output current capability of 4.5 Amperes further extend the potential usage scenarios.

The design features NEMA Type 1 (IP20) enclosure ratings, suitable for a variety of indoor applications. While the human interface module is a blank plate, a robust control option utilizing 115 Volts AC is included for streamlined integration. The framing corresponds to the A1 size, making it compact yet powerful, capable of providing a nominal horsepower of 1 (or 0.75 kilowatts) suited for rate applications.

Revision Part #Also known as
1336S-AQF10-AA-EN-HAB-L6 Ser A1336S-AQF10-AA-EN-HAB-L6/A, Series A, Rev A
Don't see your particular revision? Contact us now.
