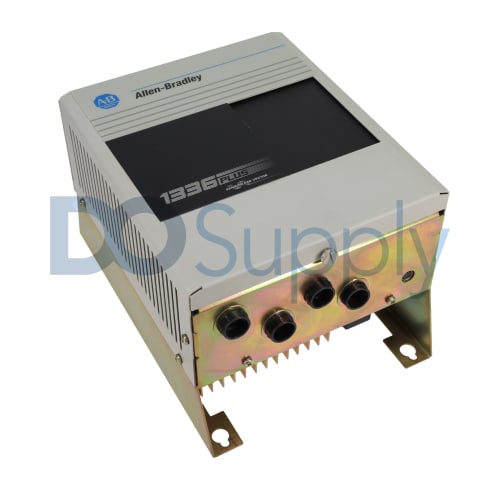

Allen Bradley 1336 PLUS Drives 1336S-AQF50-AE-FR4

Product image is representative; revision or series may vary. Contact us to request a specific version.

1336S-AQF50-AE-FR4

|
Need a Specific Revision?

The 1336S-AQF50-AE-FR4 model from Allen Bradley is an adjustable frequency AC drive designed for versatile applications. This unit operates effectively within a voltage range of 200 to 240 volts AC and is rated for a power output of 5 HP, equivalent to 3.7 kW.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1336S-AQF50-AE-FR4

ManufacturerAllen Bradley
Product TypeAdjustable Frequency AC Drive
Product Line1336 PLUS Drives
Part Number1336S-AQF50-AE-FR4
Weight20.00 lbs (9.07 kg)
UPC662073111429
Voltage200 to 240 Volts AC
Drive Rating5 HP
Power Rating3.7 kW
Enclosure TypeIP 20 (NEMA 1)
Input Frequency Range48–62 Hz
Frame SizeA3 (compact form factor)
Control MethodSine-coded PWM
Output Frequency Range0 – 400 Hz
Motor Control ModeVolt per Hertz control
Carrier Frequency2–10 kHz
Overload Capability150% rated output for 1 min
Transient Line Protection6000 V peak
Power Loss Ride-Through15 ms
View as PDF
Request a Repair

The Allen Bradley 1336S-AQF50-AE-FR4 is engineered as an adjustable frequency AC drive. Operating within a voltage range of 200 to 240 volts AC, this drive is rated at 5 horsepower, equal to 3.7 kilowatts. Designed for efficiency, it features a compact A3 frame size, making it suitable for applications with limited space.

The input frequency range spans from 48 to 62 Hz, enabling compatibility with various electrical systems. It employs a sine-coded PWM control method, which ensures smooth motor performance. Consequently, the output frequency can be adjusted from 0 to 400 Hz, providing flexibility for different operational needs.

For effective motor control, this drive utilizes the volt per Hertz control mode, optimizing motor performance under varying loads. It has a carrier frequency range of 2 to 10 kHz, adding the advantage of reducing acoustic noise in certain applications. The 1336S-AQF50-AE-FR4 also boasts an impressive overload capability that allows it to deliver 150% of its rated output for one minute, ensuring reliability in demanding conditions.

Another critical feature is its transient line protection, rated at 6000 volts peak, safeguarding the unit from voltage spikes. Moreover, the power loss ride-through capability of 15 milliseconds assists in maintaining operation during brief power interruptions. Overall, the Allen Bradley 1336S-AQF50-AE-FR4 offers a comprehensive solution for efficient motor control in various environments.

Revision Part #Also known as
1336S-AQF50-AE-FR4 Ser A1336S-AQF50-AE-FR4/A, Series A, Rev A
Don't see your particular revision? Contact us now.
