1336S-B007-AN-EN3

Revisions: Ser A Ser B Ser C
Description: This Rockwell Automation adjustable frequency drive is a 7.5 HP unit. Additionally, this AC drive comes with a rating of 5.5 kW. This VFD is powered with 380-480 VAC, has an IP 00 (open type) enclosure type, and has the English language. This sensorless vector drive is a size B1/B2 frame unit.
Available Now
Request a quote for 1336S-B007-AN-EN3

Description: This Rockwell Automation adjustable frequency drive is a 7.5 HP unit. Additionally, this AC drive comes with a rating of 5.5 kW. This VFD is powered with 380-480 VAC, has an IP 00 (open type) enclosure type, and has the English language. This sensorless vector drive is a size B1/B2 frame unit.

DO Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with DO Supply's 1-year warranty

Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

disclaimer
credit cards
better business bureau
Revisions: Ser A Ser B Ser C

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via UPS, DHL, and TNT
Repairs: We offer repair service for the 1336S-B007-AN-EN3.
Exchange: Exchange credit for your defective unit available.
Conditions: We sell preowned surplus and refurbished parts.

To speak to a sales representative for pricing & lead time:


Rated 4.6 with 19 reviews

    Technical Specifications for 1336S-B007-AN-EN3

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1336S-B007-AN-EN3
Voltage380 to 480 Volts AC
kW (Horsepower)5.5 (7.5)
Enclosure TypeIP 00 (Open)
LanguageEnglish
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 1336S-B007-AN-EN3 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336S-B007-AN-EN3 units instead of migration.

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1336S-B007-AN-EN3
Voltage380 to 480 Volts AC
kW (Horsepower)5.5 (7.5)
Enclosure TypeIP 00 (Open)
LanguageEnglish
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 1336S-B007-AN-EN3 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336S-B007-AN-EN3 units instead of migration.

s

About 1336S-B007-AN-EN3

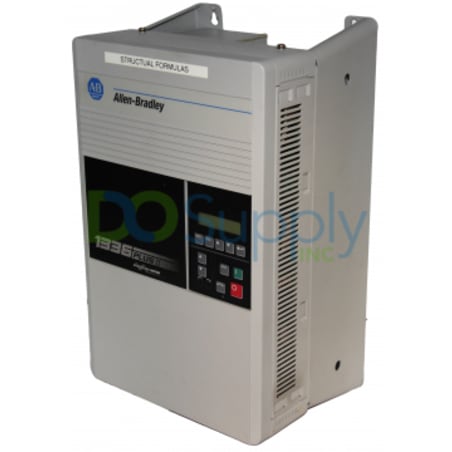

The Allen-Bradley 1336S-B007-AN-EN3 AC drive is a 1336 PLUS series drive that comes with an A4 frame-size and an adjustable frequency that offers a direct and efficient technique for regulating the speed of the 3-phase squirrel cage motor that it controls. The 1336S-B007-AN-EN3 drive controls the motor with a 3-phase AC current. The 3-phase squirrel cage motor consists of 2 main parts which are the rotor and the stator. The Horsepower rating and the voltage range are 7.5 Horsepower (5.5 kilowatts) and 380 to 480 Volts AC, respectively. Other supplemental features of the 1336S-B007-AN-EN3 drive include the ground fault trip and the short circuit trip. The ground fault trip offers phase-to-ground protection while the short circuit trip delivers phase-to-phase voltage surge protection by using a metal oxide varistor (MOV).



The power supply of the 1336S-B007-AN-EN3 drive is specified with constant and variable torque capabilities at nominal values. For constant torque, the input and output current is 8 to 11 KVA/13 Amps and 10 KVA/12.5 Amps at 380 to 480 Volts AC. For variable torque, the input and output currents are 9 to 12 KVA/14 Amps and 11 KVA/14 Amps at 380 to 480 Volts AC. Moreover, the 1336S-B007-AN-EN3 drive has an intermittent overload protection feature for the constant and variable torque levels. The former has 150% of the valued output for 1 minute while the latter has 115% of the valued output for 1 minute. The relative ambient humidity range that this drive can operate in or be stored in is 5 to 95% without condensation. The storage temperature range for the drive is -40 to 70 degrees Celsius or -40 to 158 degrees Fahrenheit.



Technical Description of 1336S-B007-AN-EN3

This 1336 PLUS Adjustable Frequency AC drive is a 380-480V AC unit with 5.5 (7.5) kilowatts(horsepower) and has a(n) IP 00 (Open) enclosure. This unit is in the English language.

Repair Services for 1336S-B007-AN-EN3

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your 1336S-B007-AN-EN3. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions for 1336S-B007-AN-EN3

Please refer to the manual for more information about the 1336S-B007-AN-EN3 such as the wiring diagrams, data sheets and migration or obsolescence details.

Revision Part # Also Known as Availability
1336S-B007-AN-EN3 Ser A
1336S-B007-AN-EN3/A, Series A, Rev A Request Quote
1336S-B007-AN-EN3 Ser B
1336S-B007-AN-EN3/B, Series B, Rev B Request Quote
1336S-B007-AN-EN3 Ser C
1336S-B007-AN-EN3/C, Series C, Rev C Request Quote
