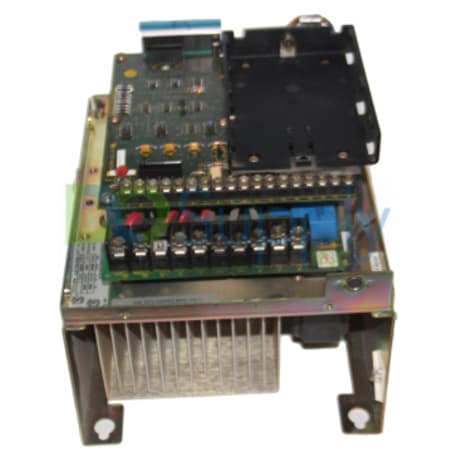

Allen Bradley 1336 PLUS Drives 1336S-BRF50-AN-EN

Product image is representative; revision or series may vary. Contact us to request a specific version.

1336S-BRF50-AN-EN

|
Need a Specific Revision?

The 1336S-BRF50-AN-EN model from Allen Bradley is an adjustable frequency drive capable of operating within a wide voltage range from 380 to 480 VAC and 513 to 620 VDC. This drive has a power rating of 3.7 kW and is designed for various industrial applications.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1336S-BRF50-AN-EN

ManufacturerAllen Bradley
Product TypeAdjustable Frequency Drive
Product Line1336 PLUS Drives
Part Number1336S-BRF50-AN-EN
Weight15.00 lbs (6.80 kg)
UPC721749940241
Voltage Rating (AC)380-480 VAC
Voltage Rating (DC)513-620 VDC
Power Rating3.7 kW
IP ProtectionIP00
Enclosure TypeOpen Type
Language GroupEnglish
Operating Temperature Range0 to 50°C
Storage Temperature Range-40 to 70°C
Relative Humidity5 to 95% (non-condensing)
Installation Altitude1000 m
Shock Resistance15G peak for up to 11 ms (±1.0 ms)
Vibration Resistance0.006 inches (0.152 mm) of displacement, 1G peak
View as PDF
Request a Repair

The Allen Bradley 1336S-BRF50-AN-EN is designed as an adjustable frequency drive that supports robust performance in various automation tasks. It accepts AC voltage inputs within the range of 380 to 480 volts and can handle DC voltage inputs from 513 to 620 volts. With a power capacity of 3.7 kilowatts, this drive is suitable for a variety of motor control applications.

This model features an open-type enclosure classified as IP00, meaning it is intended for installation in clean environments where dust and moisture ingress are minimal. The drive operates within a temperature span of 0 to 50 degrees Celsius, while it can withstand storage conditions as severe as -40 degrees Celsius to 70 degrees Celsius.

Furthermore, the 1336S-BRF50-AN-EN is designed to function reliably in environments with relative humidity ranging from 5% to 95%, assuming that conditions remain non-condensing. It is optimized for installation at altitudes of up to 1000 meters without loss of performance.

This drive also shows resilience to mechanical stress, rated for shock resistance up to 15G for 11 milliseconds, ensuring safe operation in demanding environments. Additionally, it can tolerate vibration displacement of 0.006 inches, which corresponds to 1G peak. Overall, the 1336S-BRF50-AN-EN offers a comprehensive set of specifications ideal for a range of industrial control applications.

Revision Part #Also known as
1336S-BRF50-AN-EN Ser A1336S-BRF50-AN-EN/A, Series A, Rev A
Don't see your particular revision? Contact us now.
