1336S-BRF75-AA-EN4-HA1-L4

Revisions: Ser A

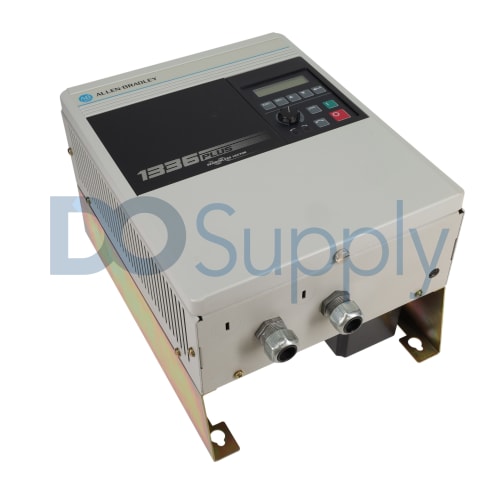

Description: This Allen-Bradley 5.5 kilowatt sensorless vector drive is powered with 380-480V AC or 513-620V DC. In addition, this adjustable frequency drive has a nominal horsepower rating of 7.5 HP. This VFD comes with English on the drive, comes with a programmer and controller with analog knob installed, and is contained in an IP 20 (NEMA 1) enclosure. This 1336 Plus AC drive is a size B1/B2 frame unit. This adjustable frequency drive has a TTL contact option installed.
Available Now
Request a quote for 1336S-BRF75-AA-EN4-HA1-L4

Description: This Allen-Bradley 5.5 kilowatt sensorless vector drive is powered with 380-480V AC or 513-620V DC. In addition, this adjustable frequency drive has a nominal horsepower rating of 7.5 HP. This VFD comes with English on the drive, comes with a programmer and controller with analog knob installed, and is contained in an IP 20 (NEMA 1) enclosure. This 1336 Plus AC drive is a size B1/B2 frame unit. This adjustable frequency drive has a TTL contact option installed.

Preowned

Includes a 1-Year DO Supply warranty.

DO Supply is not an authorized distributor for Allen Bradley.

top legal disclaimer
disclaimer
credit cards
better business bureau
Revisions: Ser A

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via UPS, DHL, and TNT
Repairs: We offer repair service for the 1336S-BRF75-AA-EN4-HA1-L4.
Exchange: Exchange credit for your defective unit available.
Conditions: We sell preowned surplus and refurbished parts.

To speak to a sales representative for pricing & lead time:


Rated 4.7 with 6 reviews

    Technical Specifications for 1336S-BRF75-AA-EN4-HA1-L4

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1336S-BRF75-AA-EN4-HA1-L4
Voltage380 to 480 Volts AC or 513 to 620 Volts DC
kW (Horsepower)5.5 (7.5)
Enclosure TypeIP 20 (NEMA 1)
LanguageEnglish
HA1Snap-In Cradle/Blank Plate
L4TTL Contact
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 1336S-BRF75-AA-EN4-HA1-L4 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336S-BRF75-AA-EN4-HA1-L4 units instead of migration.

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1336S-BRF75-AA-EN4-HA1-L4
Voltage380 to 480 Volts AC or 513 to 620 Volts DC
kW (Horsepower)5.5 (7.5)
Enclosure TypeIP 20 (NEMA 1)
LanguageEnglish
HA1Snap-In Cradle/Blank Plate
L4TTL Contact
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 1336S-BRF75-AA-EN4-HA1-L4 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336S-BRF75-AA-EN4-HA1-L4 units instead of migration.

s

About 1336S-BRF75-AA-EN4-HA1-L4

The Allen-Bradley 1336S-BRF75-AA-EN4-HA1-L4 drive is an adjustable frequency AC drive that is a part of the Allen-Bradley 1336S Plus series that comes with a 380 to 480 Volts AC 3-phase voltage rating and with a 7.5 Horsepower normal duty power rating. The drive is shipped with an instruction manual written in English, and its HMI is programmed in English. The 1336S-BRF75-AA-EN4-HA1-L4 drive is intended to control the speed of smaller 3-phase motors in applications like fans, pumps, hydraulics, and conveyor systems. This device is simple to control and cost-efficient. It is a compact solution enclosed in an IP 20 rated enclosure.



The Allen-Bradley 1336S-BRF75-AA-EN4-HA1-L4 AC drive is equipped with features that meet different safety and environmental requirements. It is CE and cUL-us marked, and it provides protection from overheating and ground faults. The 1336S-BRF75-AA-EN4-HA1-L4 drive has electronic components that are sensitive to electrostatic discharge (ESD). For that reason, the specialists setting up this drive must follow ESD measures to protect the drive from damage. The Allen-Bradley 1336S-BRF75-AA-EN4-HA1-L4 drive has 5 Volts rated TTL contacts and it provides users with a selectable sensorless vector control option. Auto-tuned parameters can be fine-tuned over the HMI that has an analog potentiometer for rapid speed change on site. This drive has a “flying start” option that can handle booting for rotating motor loads. This is because this drive has the ability to determine the speed and direction of a rotating motor as soon as it is connected to it. It then adapts the output value for the motor to start a smooth speed change.



Technical Description of 1336S-BRF75-AA-EN4-HA1-L4

This 1336 PLUS Adjustable Frequency AC drive is a 380-480VAC or 513-620V DC unit with 5.5 (7.5) kilowatts(horsepower) and has a(n) IP 20 (NEMA 1) enclosure. This unit is in the English language.

Repair Services for 1336S-BRF75-AA-EN4-HA1-L4

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your 1336S-BRF75-AA-EN4-HA1-L4. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions for 1336S-BRF75-AA-EN4-HA1-L4

Please refer to the manual for more information about the 1336S-BRF75-AA-EN4-HA1-L4 such as the wiring diagrams, data sheets and migration or obsolescence details.

Revision Part # Also Known as Availability
1336S-BRF75-AA-EN4-HA1-L4 Ser A
1336S-BRF75-AA-EN4-HA1-L4/A, Series A, Rev A Request Quote
