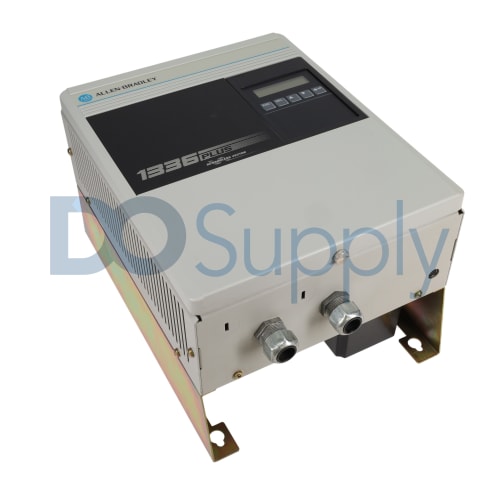

Product image is representative; revision or series may vary. Contact us to request a specific version.
1336S-BRF75-AA-EN4-HAP-L4
The 1336S-BRF75-AA-EN4-HAP-L4 model by Allen Bradley is an adjustable frequency AC drive designed for versatile applications. Capable of providing an output power of 7.5 HP and an output current of 14.0 Amps at constant torque, it operates efficiently across a specified voltage range.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for 1336S-BRF75-AA-EN4-HAP-L4
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | Adjustable Frequency AC Drive |
| Product Line | 1336 PLUS Drives |
| Part Number | 1336S-BRF75-AA-EN4-HAP-L4 |
| Weight | 35.00 lbs (15.88 kg) |
| Input kVA (Variable Torque) | 12.2 to 14.7 kVA |
| Input Current (Variable Torque) | 18.5 Amps |
| Output kVA (Variable Torque) | 13.9 kVA |
| Voltage Rating | 380 to 480 VAC or 513 to 620 V DC |
| Output Power (HP) | 7.5 HP |
| Output Power (kW) | 5.5 kW |
| Enclosure Type | IP20 (NEMA 1) |
| Language | English/English V4.xx |
| Control Interface Options | TTL Contact |
| Human Interface Module | Programmer Only |
| Input kVA (Constant Torque) | 9.5 to 11.6 kVA |
| Input Current (Constant Torque) | 14.5 Amps |
| Output kVA (Constant Torque) | 11.2 kVA |
| Output Current (Constant Torque) | 14.0 Amps |
The Allen Bradley 1336S-BRF75-AA-EN4-HAP-L4 is an adjustable frequency AC drive, specifically designed to handle both variable and constant torque applications. It allows for a range of input voltages from 380 to 480 VAC and up to 620 V DC. With the capability to generate an output power of 7.5 HP, this drive is appropriate for various power-intensive tasks.
For variable torque applications, the input kVA ranges from 12.2 to 14.7 kVA while the input current can reach 18.5 Amps. The output for variable torque achieves approximately 13.9 kVA. In contrast, under constant torque conditions, the device supports an input kVA of 9.5 to 11.6 kVA, with the input current standing at 14.5 Amps. It produces an output kVA of 11.2 kVA and maintains a current of 14.0 Amps.
Constructed with an IP20 (NEMA 1) enclosure, this drive is suitable for environments where dust ingress is minimal. The device is equipped with control interface options using TTL contacts. Users can access a programmer-only human interface module to facilitate easy configuration and operation. The language option for the interface is configured to English/English V4.xx, ensuring accessibility for English speakers.
| Revision Part # | Also known as | |
|---|---|---|
| 1336S-BRF75-AA-EN4-HAP-L4 Ser A | 1336S-BRF75-AA-EN4-HAP-L4/A, Series A, Rev A | |
| Don't see your particular revision? Contact us now. | ||
- 1336S-8RF75-AA-EN4-HAP-L4
- 1336S-BRF75-AA-EN4-HAP-LA
- 1336S-BRF75-AA-ENA-HAP-L4
- 1336S-BRF75-AA-ENA-HAP-LA
- 1336S8RF75AAEN4HAPL4
- 1336SBRF75AAEN4HAPL4
- 1336SBRF75AAEN4HAPLA
- 1336SBRF75AAENAHAPL4
- 1336SBRF75AAENAHAPLA
- I336S-8RF75-AA-ENA-HAP-LA
- I336S-BRF75-AA-EN4-HAP-L4
- I336S8RF75AAENAHAPLA
- I336SBRF75AAEN4HAPL4
This 1336 PLUS Adjustable Frequency AC drive is a 380-480VAC or 513-620V DC unit with 5.5 (7.5) kilowatts(horsepower) and has a(n) IP 20 (NEMA 1) enclosure. This unit is in the English language.
