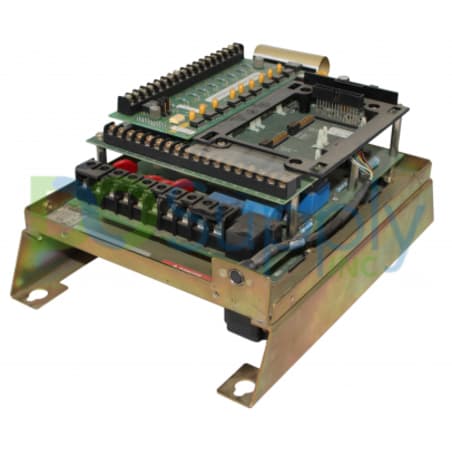

Allen Bradley 1336 PLUS II Drives 1336F-AQF10-AN-EN

Product image is representative; revision or series may vary. Contact us to request a specific version.

1336F-AQF10-AN-EN

|
Need a Specific Revision?

The Allen Bradley 1336F-AQF10-AN-EN is an adjustable frequency AC drive with a power rating of 1 horsepower, suitable for various applications. It operates at an AC voltage of 200–240 volts and a DC voltage of 310 volts, making it versatile for different systems.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1336F-AQF10-AN-EN

ManufacturerAllen Bradley
Product TypeAdjustable Frequency AC Drive
Product Line1336 PLUS II Drives
Part Number1336F-AQF10-AN-EN
Weight7.31 lbs (3.32 kg)
Rated Voltage (AC)200–240VAC
Rated Voltage (DC)310VDC
HP Rating1 Hp
IP RatingIP00
Enclosure TypeOpen Type
Language GroupEnglish
Minimum Operating Temperature0°C
Maximum Operating Temperature50°C
Minimum Storage Temperature-40°C
Maximum Storage Temperature70°C
Relative Humidity5 to 95% (Non-Condensing)
Installation Height1000 m
View as PDF
Request a Repair

The 1336F-AQF10-AN-EN part number from Allen Bradley falls under the 1336 PLUS II Drives series. This adjustable frequency AC drive is engineered for efficiency with a rating of 1 horsepower and is compatible with input voltages of 200 to 240 VAC. It can also work with a rated DC voltage of 310 volts. The open-type enclosure has an IP00 designation, indicating it is not fully protected from dust or moisture, thus, suitable for controlled environments.

Designed for various applications, the device is capable of operating effectively within a temperature range where the minimum temperature is 0°C and the maximum is 50°C. It can also be stored in temperatures from -40°C to 70°C. Furthermore, it accommodates relative humidity values between 5% and 95% as long as there is no condensation present.

The installation height for this drive reaches up to 1000 meters, allowing for various installation scenarios in both industrial and commercial setups. The primary language for communication with this device is English, facilitating ease of use in English-speaking environments. This combination of features makes the 1336F-AQF10-AN-EN a reliable choice for controlling AC motors across diverse applications.

Revision Part #Also known as
1336F-AQF10-AN-EN Ser A1336F-AQF10-AN-EN/A, Series A, Rev A
1336F-AQF10-AN-EN Ser B1336F-AQF10-AN-EN/B, Series B, Rev B
Don't see your particular revision? Contact us now.
