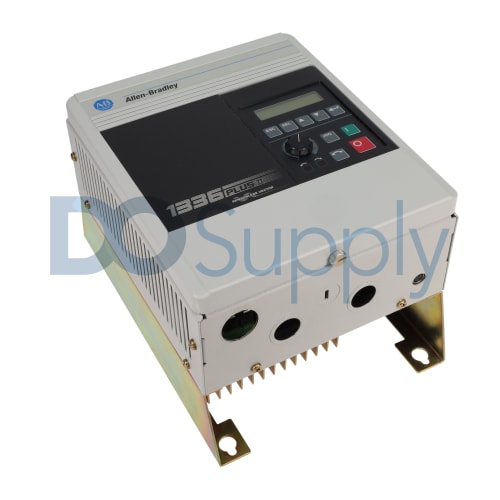

1336F-BRF10-AA-EN-HAS-L4

The 1336F-BRF10-AA-EN-HAS-L4, developed by Allen Bradley, is a versatile adjustable frequency AC drive. It operates efficiently within a 3-phase input voltage range of 380 to 480 volts AC, specifically designed to facilitate high-performance motor management. This drive supports input frequencies ranging from 47 to 63 Hertz, enabling it to adapt to different operational settings.

Configured for 1 horsepower, or 0.75 kilowatts, its design is well suited for various applications where energy efficiency and precise motor control are essential. The drive's degree of protection is classified as IP20 (NEMA Type 1), making it adequate for use in protected indoor environments, shielding it from dust and contact with larger objects, though not from water ingress.

The nominal bus voltage is rated at 648 volts DC, which guarantees stable operation under load. For added reliability, the drive is equipped with overvoltage and undervoltage trip thresholds set at 570 volts AC and 280 volts AC, respectively. This feature provides necessary protection to avoid damage caused by electrical fluctuations. Additionally, it incorporates a power ride-thru capability of 15 milliseconds at full load, ensuring operational continuity during brief power interruptions.

The drive facilitates control via a Transistor-Transistor-Logic (TTL) interface, enhancing integration with control systems. An English language module supports easy setup and adjustment, and the human interface module combines both a programmer and controller, complete with an analog potentiometer for straightforward control adjustments. Overall, the 1336F-BRF10-AA-EN-HAS-L4 is designed to meet the demands of modern industrial applications while ensuring efficient motor performance.
