1336F-BRF10-AE-EN

Revisions: Ser A

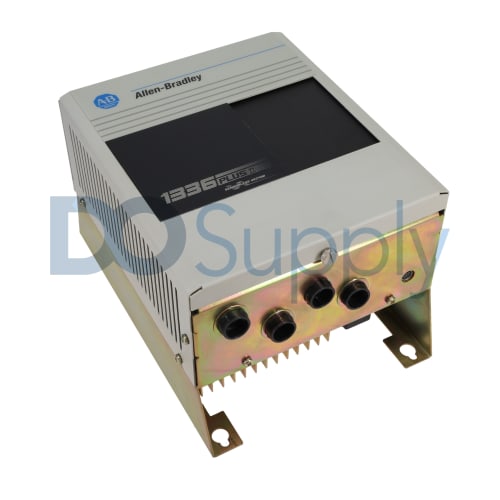

Description: This Allen Bradley 1336 Plus II AC drive is a 1 horsepower drive. This AC drive is contained in an IP 20 (NEMA 1) and EMC enclosure. In addition, it is a 0.75 kilowatt drive. This 1336 Plus II drive additionally has English on the drive. It is a 380-480 VAC or 513-620 VDC adjustable frequency drive and has an A1 frame size.
Available Now
Request a quote for 1336F-BRF10-AE-EN

Description: This Allen Bradley 1336 Plus II AC drive is a 1 horsepower drive. This AC drive is contained in an IP 20 (NEMA 1) and EMC enclosure. In addition, it is a 0.75 kilowatt drive. This 1336 Plus II drive additionally has English on the drive. It is a 380-480 VAC or 513-620 VDC adjustable frequency drive and has an A1 frame size.

DO Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with DO Supply's 1-year warranty

Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

disclaimer
credit cards
better business bureau
Revisions: Ser A

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via UPS, DHL, and TNT
Repairs: We offer repair service for the 1336F-BRF10-AE-EN.
Exchange: Exchange credit for your defective unit available.
Conditions: We sell preowned surplus and refurbished parts.

To speak to a sales representative for pricing & lead time:


Rated 4.6 with 6 reviews

    Technical Specifications for 1336F-BRF10-AE-EN

BrandAllen-Bradley
kW(Hp)0.75 (1)
Part Number/Catalog No.1336F-BRF10-AE-EN
Enclosure TypeIP20 / NEMA Type 1 / EMC
Voltage380-480VAC or 513 - 620VDC
LanguageEnglish
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 1336F-BRF10-AE-EN has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336F-BRF10-AE-EN units instead of migration.

BrandAllen-Bradley
kW(Hp)0.75 (1)
Part Number/Catalog No.1336F-BRF10-AE-EN
Enclosure TypeIP20 / NEMA Type 1 / EMC
Voltage380-480VAC or 513 - 620VDC
LanguageEnglish
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 1336F-BRF10-AE-EN has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 1336F-BRF10-AE-EN units instead of migration.

s

About 1336F-BRF10-AE-EN

The 1336F-BRF10-AE-EN is an adjustable frequency AC drive that is manufactured by Allen-Bradley. This drive interfaces the motor to allow modulating speed and torque control.

This drive has an IP20 / NEMA Type 1 / EMC protection which means that this drive has an inherent protection against entry of solid objects, however, does not offer protection against liquids. It this drive is intended to be installed to a location where water jets or splashes are present, an appropriate enclosure must be used to house the adjustable frequency AC drive.

If installed within an enclosure, the drive must be operated within a temperature range of 0 to 40 degrees C or 32 to 104 degrees F. The heatsink has a heat dissipation of 20 Watts while the overall dissipation of the drive is 35 Watts. Climate control components help maintain this temperature range such as fans or heaters, depending on the environment. This drive is installed with a fan that evacuates air from the drive. This warm air must be evacuated from the panel with the use of an exhaust fan. Observe installation clearances to promote adequate air flow, working space and proper wire bends.

This drive has an Overvoltage trip of 570VAC while the Undervoltage trip is 280VAC. Bus Overvoltage and Undervoltage trip includes 810VDC and 400VDC respectively while the nominal bus voltage is 648VDC. The Heatsink has a built-in temperature sensor using a Thermistor that is monitored by the microprocessor.

The Allen Bradley 1336F-BRF10-AE-EN Plus II Adjustable Frequency AC Drive is a digitally controlled AC drive with built-in protective features, which provides high-performance motor control in many industrial applications. The 1336F-BRF10-AE-EN can be digitally controlled for precise and repeated operations and like all drive in this series, features the Sensorless Vector Control (SVC), which guarantees maximum torque even at a stall and is capable of handling tough industrial applications. The 1336F-BRF10-AE-EN has a 3-phase AC input range of 380 to 480 Volt AC or DC input range of 513 to 620 Volt DC, and it has a maximum drive power rating of 0.75 Kilowatts (1 Horse Power) at 460 Volt AC input. This drive has a displacement power factor of 0.8, with an expected efficiency of 97.5%, and it offers 200,000 Ampere branch circuit protection using suitable fusible disconnect and standard circuit breakers. It is designed to flawlessly ride through 15 milliseconds and it provides class 10 motor overload protection with a rated overload capacity of 150% for 60 seconds. The 1336F-BRF10-AE-EN provides frequency control using sine coded pulse width modulated signal with programmable carrier range of 2 to 10 Kilohertz, and it has user adjustable output frequency range within 0 to 400 Hertz. This drive has a user selectable output voltage range of 0 to rated motor voltage, and it provides 2 Accel/Decel times which are programmed independently from 0 to 3600 seconds. This drive has standard digital and analog I/O configured for various functions, and it provides users parameters in default English language text. It has EMC rated IP20 industrial enclosure, with cabinet ambient temperature range of 0 to 40 degrees Celsius (32 to 104 degrees Fahrenheit) at a non-condensing/non-condensing relative humidity range of 5 to 95%. The 1336F-BRF10-AE-EN has a net shipping weight of 4.31 Kilograms, with a sipping dimension of 215.9 x 290.0 x 160 millimeters, and it has CE, UL, and CSA certifications. This content was written and compiled by dosupply.com and should not be copied.

Technical Description of 1336F-BRF10-AE-EN

The Allen Bradley 1336F-BRF10-AN-EN is an adjustable frequency AC drive that is part of the 1336F Plus II product family. It has a rated Input voltage of 380 - 480VAC, 3 Phase or 513 - 620VDC with an output current of 2.1 amperes, power of 0.75 kilowatts or 1.0 Horsepower and IP00 protection rating.

Repair Services for 1336F-BRF10-AE-EN

Type Lead Time Price Action
Repair Service 2-4 weeks $1790cartAdd to Cart
Our highly skilled technicians can repair your 1336F-BRF10-AE-EN. All of our repairs come with a 1 Year Warranty. Please contact us for additional information about our repair process.

Revisions for 1336F-BRF10-AE-EN

Please refer to the manual for more information about the 1336F-BRF10-AE-EN such as the wiring diagrams, data sheets and migration or obsolescence details.

Revision Part # Also Known as Availability
1336F-BRF10-AE-EN Ser A
1336F-BRF10-AE-EN/A, Series A, Rev A Request Quote
Common misspellings:
