1336F-BRF100-AA-EN

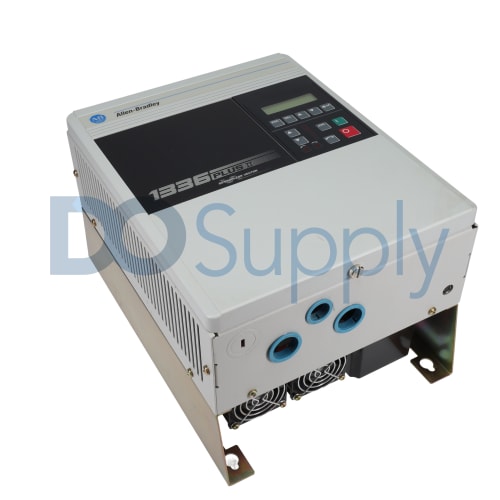

The 1336F-BRF100-AA-EN is an Allen-Bradley product that is part of the 1336 PLUS II series. It is an Adjustable Frequency AC Drive, designed to operate on three-phase supply systems with symmetrical line voltages. This drive is equipped with a Metal Oxide Varistor (MOV) that provides the voltage surge protection. The enclosure type for this product is IP20 (NEMA 1). It is microprocessor based drive with a voltage ranging from 380 to 480 Volts AC or 513 to 620 Volts DC. The HorsePower rating for 1336F-BRF100-AA-EN is set at 10Hp and its language specifications are confined to English. This digitally programmable drive is capable enough to make precise adjustments. Additionally, it is programmed to provide real-time diagnostics that includes the Fault as well as the Custom Status reports. This feature of the 1336F-BRF100-AA-EN aids the quick and informed decision making. The 1336 PLUS II series product, 1336F-BRF100-AA-EN, has been devised for maximum control and exceptional industrial capability. It has a heat sink through the back type of design that helps the device to maintain the required temperatures. The small size and the planar construction increase the reliability level. The 1336F-BRF100-AA-EN can cope with the high-speed inputs and the flexible inputs and outputs. Its functions such as the traverse function, auto restart and power up, auto-tuning, step logic, and more, are provided by this drive along with various protective features. The overcurrent and overvoltage stall, and the six drive alarms and fault reset inputs are some of the protective features that this Allen-Bradley product provides to the users.

The 1336F-BRF100-AA-EN is an Adjustable Frequency AC Drive that part of the 1336 Plus II series of Allen-Bradley. Commonly known as Variable Frequency Drive (VFD) or Variable Speed Droves (VSD), this device is used to control the speed of a 3-phase motor, allowing it to be used in modulating speed and torque control loops. Via the Sensorless Vector Control (SVC) or selectable Volts / Hertz (V/Hz) control method, this drive is compatible for use in a wide variety of industrial processes and applications.

The 1336F-BRF100-AA-EN operates at an input supply voltage of 380-480 Volts AC, 3-Phase or 513-620 Volts DC with output ratings of 10.0 Horsepower or 7.5 Kilowatts and an output current of 16.1 Amperes for constant torque @ 380-480 Volts AC; 22.0 Amperes for variable torque @ 480 Volts AC and 400 Volts AC. This drive has an IP20 (NEMA 1) enclosure and uses English language to its system dialog.

The 1336F-BRF100-AA-EN comes with integrated drive monitoring and protective features such as Undervoltage, Overvoltage, Drive Overcurrent, Overtemperature, Ground fault, Overcurrent stall, Overvoltage stall, Drive output short, Single phase operation, and Encoder loss. Additionally, this drive has the capability of acting as a soft starter as well as it comes with starting and stopping modes including dual channel acceleration and deceleration profiles, S-Curve Acceleration and Deceleration profile, Proactive Current limit, Flying start and preset speeds.

The 1336F-BRF100-AA-EN comes with integrated I/O terminals that is composed of Control Output Two (2) Form A (N.O.) Two (2) Form C (N.O. - N.C.) which can be assigned to 17 different drive variables; Analog Inputs and analog Outputs; Pulse Train Input; Encoder Feedback for Closed Loop Speed Control and High-Speed Input channels.
