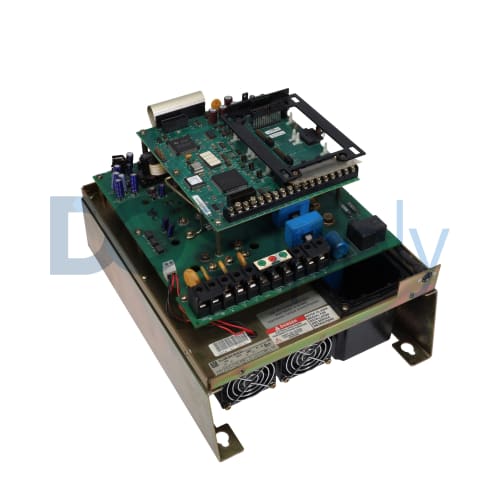

Product image is representative; revision or series may vary. Contact us to request a specific version.
1336F-BRF100-AN-EN
The 1336F-BRF100-AN-EN is an adjustable frequency AC drive designed for sophisticated motion control. This unit utilizes a sensorless vector control methodology and operates efficiently under a range of voltage inputs and outputs.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for 1336F-BRF100-AN-EN
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | Adjustable Frequency AC Drive |
| Product Line | 1336 PLUS II Drives |
| Part Number | 1336F-BRF100-AN-EN |
| Weight | 22.00 lbs (9.98 kg) |
| Control Method | Sensorless vector |
| Input Voltage (DC) | 513–620 VDC |
| Rated Power | 7.5 kW |
| Input Phase | 3-phase |
| Rated Horsepower | 10 HP |
| Line Frequency | 50/60 Hz |
| Input Voltage (AC) | 380–480 VAC |
| Output Voltage | 0–Input VAC |
| Output Frequency Range | 0–400 Hz |
| Language | English |
| Enclosure Rating | IP00 (open) |
| Overload Protection | Electronic |
| Status Indication | LED indicators |
The Allen Bradley 1336F-BRF100-AN-EN is engineered as an adjustable frequency AC drive that adapts to various industrial applications. Operating with a voltage range of 513 to 620 VDC, it successfully regulates performance in demanding environments. This device is suitable for 3-phase systems and can deliver a rated power output of 7.5 kW, translating to a horsepower rating of 10 HP.
The input voltage for this drive falls between 380 and 480 VAC, allowing for flexibility in electrical configurations. Its capability to output voltage ranging from 0 to the input level, alongside an output frequency spectrum reaching up to 400 Hz, makes it a versatile choice for different operational needs.
Designed for user-friendly operation, the control method is based on sensorless vector technology, providing high efficiency even at varying load conditions. Enclosure protection is rated IP00 (open), suitable for applications where extreme environmental factors are not an issue. Electronic overload protection is included to safeguard against potential system failures.
Status indicators utilizing LEDs allow for straightforward monitoring, facilitating quick diagnostics and system assessments. The drive's user interface supports English, ensuring ease of use for operators. Overall, the 1336F-BRF100-AN-EN offers robust and effective performance for varied motion control tasks in industrial settings.
| Revision Part # | Also known as | |
|---|---|---|
| 1336F-BRF100-AN-EN Ser A | 1336F-BRF100-AN-EN/A, Series A, Rev A | |
| Don't see your particular revision? Contact us now. | ||
- 1336F-8RF100-AN-EN
- 1336F-BRF10O-AN-EN
- 1336F-BRF1O0-AN-EN
- 1336F-BRF1OO-AN-EN
- 1336F-BRFI00-AN-EN
- 1336F8RF100ANEN
- 1336FBRF100ANEN
- 1336FBRF10OANEN
- 1336FBRF1O0ANEN
- 1336FBRF1OOANEN
- 1336FBRFI00ANEN
- I336F-8RFIOO-AN-EN
- I336F-BRF100-AN-EN
- I336F-BRFI00-AN-EN
- I336F8RFIOOANEN
- I336FBRF100ANEN
- I336FBRFI00ANEN
This 1336F PLUS Adjustable Frequency AC drive is a 380-480VAC or 513-620V DC unit with 7.5 (10) kilowatts(horsepower) and has a(n) IP 00 (Open) enclosure. This unit is in the English language.
