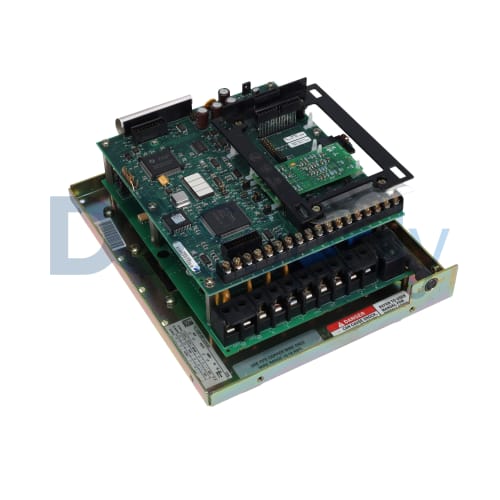

Allen Bradley 1336 PLUS II Drives 1336F-BRF15-AN-EN

Product image is representative; revision or series may vary. Contact us to request a specific version.

1336F-BRF15-AN-EN

|
Need a Specific Revision?

The 1336F-BRF15-AN-EN is a versatile adjustable frequency AC drive from the Allen Bradley 1336 PLUS II Drives series, designed for robust applications. It operates effectively within a rated voltage range of 380 to 480 volts AC and has a horsepower rating of 1.5 Hp.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1336F-BRF15-AN-EN

ManufacturerAllen Bradley
Product TypeAdjustable Frequency AC Drive
Product Line1336 PLUS II Drives
Part Number1336F-BRF15-AN-EN
Weight8.00 lbs (3.63 kg)
Rated Voltage380-480V AC
Hp Rating1.5 Hp
IP RatingIP00
Enclosure TypeEnglish
Min. Operating Temperature0 °C
Max. Operating Temperature55 °C
Min. Storage Temperature-40 °C
Max. Storage Temperature70 °C
Min. Relative Humidity5% (Non-Condensing)
Max. Relative Humidity95% (Non-Condensing)
Installation Altitude1000 m
View as PDF
Request a Repair

The Allen Bradley 1336F-BRF15-AN-EN is an adjustable frequency AC drive known for its adaptability in numerous applications. This drive functions within an input voltage range of 380 to 480 volts AC, accommodating various industrial needs. With a horsepower rating of 1.5 Hp, it provides appropriate power for smaller motor applications.

The unit's design includes an IP00 rating, indicating it is not enclosed, which is suitable for specific installation environments.

For optimal performance, the drive operates effectively within a minimal temperature of 0 °C and can handle maximum conditions of 55 °C. It is also designed for varied climate conditions, featuring storage temperature capabilities from -40 °C to 70 °C. The relative humidity ranges from a minimum of 5% to a maximum of 95%, ensuring its reliability in non-condensing environments.

Installation is feasible at altitudes of up to 1000 meters, making the 1336F-BRF15-AN-EN a valuable component for standard industrial setups.

Revision Part #Also known as
1336F-BRF15-AN-EN Ser A1336F-BRF15-AN-EN/A, Series A, Rev A
1336F-BRF15-AN-EN Ser B1336F-BRF15-AN-EN/B, Series B, Rev B
Don't see your particular revision? Contact us now.
