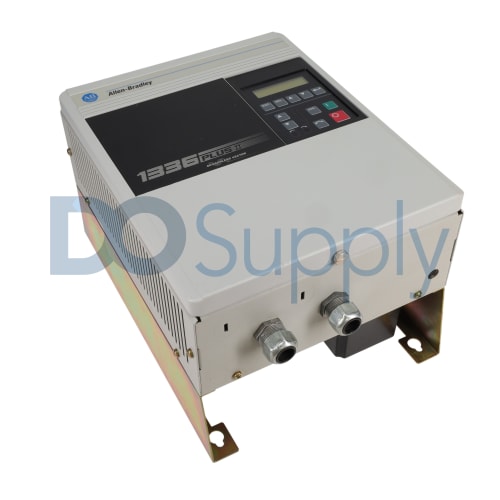

Allen Bradley 1336 PLUS II Drives 1336F-BRF200-AA-EN-HAS2-L6

Product image is representative; revision or series may vary. Contact us to request a specific version.

1336F-BRF200-AA-EN-HAS2-L6

|
Need a Specific Revision?

The Allen Bradley 1336F-BRF200-AA-EN-HAS2-L6 is an adjustable frequency AC drive specifically designed for three-phase applications. Delivering a power output of 15 kW, it operates within an input voltage range of 380 to 480 VAC or 513 to 620 VDC.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1336F-BRF200-AA-EN-HAS2-L6

ManufacturerAllen Bradley
Product TypeAdjustable Frequency AC Drive
Product Line1336 PLUS II Drives
Part Number1336F-BRF200-AA-EN-HAS2-L6
Weight25.00 lbs (11.34 kg)
Phase Type3 phases
Power Output15 kW
Input Voltage (AC)380-480 VAC
Input Voltage (DC)513-620 VDC
Enclosure RatingIP20 / NEMA 1
Frame SizeA4 Frame
Control Interface (L6)115 VAC
Current Rating28 A (Constant Torque Input)
Overload Capacity150% for 1 minute
Protection TypeUndervoltage, overvoltage, overcurrent, overtemperature, ground fault and encoder loss detection
Operating Temperature0°C to +50°C
View as PDF
Request a Repair

The 1336F-BRF200-AA-EN-HAS2-L6 is classified as an adjustable frequency AC drive by Allen Bradley, catering to three-phase operational configurations. This drive achieves a power output of 15 kW, providing the necessary performance for diverse applications. Users can expect it to function effectively within an AC input voltage range of 380 to 480 VAC or a DC input of 513 to 620 VDC.

Constructed with an A4 size frame, the unit has an enclosure rating of IP20 / NEMA 1, granting it adequate protection in typical environments. The integrated control interface operates at 115 VAC, enhancing usability and connection to various systems. Additionally, the device boasts a constant torque input rating of 28 A, ensuring reliable performance during intensive operations.

The 1336F-BRF200-AA-EN-HAS2-L6 AC drive is capable of handling overload conditions, supporting up to 150% of its capacity for a duration of one minute. This feature enables the drive to accommodate transient situations without compromising integrity. Furthermore, it encompasses a comprehensive suite of protection features that includes safeguards against undervoltage, overvoltage, overcurrent, and overtemperature conditions. It also detects ground faults and encoder loss to maintain system integrity. Designed to operate within a temperature range of 0°C to +50°C, this drive meets the demands of various industrial settings while ensuring robust and efficient control.

Revision Part #Also known as
1336F-BRF200-AA-EN-HAS2-L6 Ser A1336F-BRF200-AA-EN-HAS2-L6/A, Series A, Rev A
Don't see your particular revision? Contact us now.
