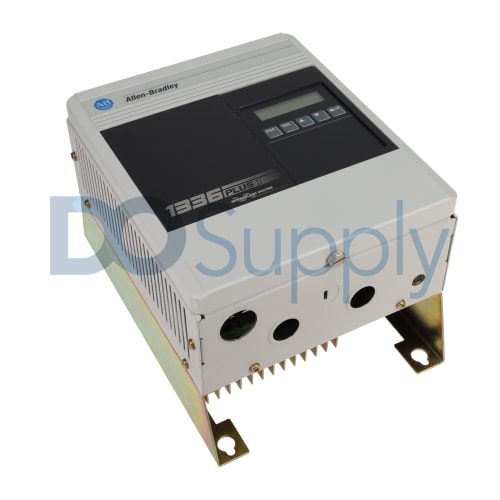

Allen Bradley 1336 PLUS II Drives 1336F-BRF30-AA-EN-HASP-L6

Product image is representative; revision or series may vary. Contact us to request a specific version.

1336F-BRF30-AA-EN-HASP-L6

|
Need a Specific Revision?

The 1336F-BRF30-AA-EN-HASP-L6 model from Allen Bradley is an adjustable frequency AC drive. It operates at a voltage range of 380 to 480 VAC and supports a horsepower rating of 3 Hp, making it suitable for moderate power applications.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1336F-BRF30-AA-EN-HASP-L6

ManufacturerAllen Bradley
Product TypeAdjustable Frequency AC Drive
Product Line1336 PLUS II Drives
Part Number1336F-BRF30-AA-EN-HASP-L6
Weight12.63 lbs (5.73 kg)
Rated Voltage (AC)380 to 480 VAC
Rated Voltage (DC)513-620V DC
Hp Rating3 Hp
IP RatingIP20
Enclosure TypeNEMA 1
Language GroupEnglish
HMI TypeProgrammer Only
Snap-InAvailable
Control Interface Options115V AC
Storage Humidity80% (non-condensing)
Installation Altitude1000 m
View as PDF
Request a Repair

The Allen Bradley 1336F-BRF30-AA-EN-HASP-L6 is classified as an adjustable frequency AC drive, primarily designed for efficient control of motor speed. Capable of operating on input voltages between 380 and 480 VAC, it also supports a direct current range from 513 to 620 volts. With a power rating of 3 Hp, this drive is well-suited for various industrial applications that require moderate horsepower capabilities.

The unit features an IP20-rated enclosure, conforming to NEMA 1 standards, ideal for indoor settings where environmental exposure is limited. Configuration is streamlined through a programmer-only human-machine interface, allowing users to adjust settings with ease. Additionally, control options are available at 115V AC, providing versatility for integration into existing systems.

For operational reliability, the 1336F-BRF30-AA-EN-HASP-L6 is capable of handling humidity levels up to 80% in non-condensing conditions. Installation flexibility is enhanced as this model can function at altitudes of up to 1000 meters, making it suitable for a variety of locations. The snap-in feature further simplifies maintenance and component replacement, contributing to the drive's overall efficiency.

Revision Part #Also known as
1336F-BRF30-AA-EN-HASP-L6 Ser A1336F-BRF30-AA-EN-HASP-L6/A, Series A, Rev A
1336F-BRF30-AA-EN-HASP-L6 Ser B1336F-BRF30-AA-EN-HASP-L6/B, Series B, Rev B
Don't see your particular revision? Contact us now.
