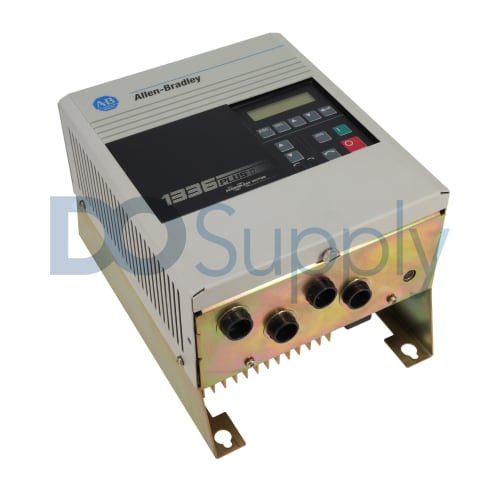

Product image is representative; revision or series may vary. Contact us to request a specific version.
1336F-BRF30-AE-EN-HAS2-L4
The 1336F-BRF30-AE-EN-HAS2-L4 from Allen Bradley is an adjustable frequency AC drive designed to function efficiently in various applications. Rated for voltages between 380-480 VAC and up to 620 V DC, this drive is suitable for diverse industrial environments. With a 3 Hp rating, it is ideal for applications involving moderate power requirements.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for 1336F-BRF30-AE-EN-HAS2-L4
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | Adjustable Frequency AC Drive |
| Product Line | 1336 PLUS II Drives |
| Part Number | 1336F-BRF30-AE-EN-HAS2-L4 |
| Weight | 15.00 lbs (6.80 kg) |
| Rated Voltage (AC) | 380-480 VAC |
| Rated Voltage (DC) | 513-620 V DC |
| Hp Rating | 3 Hp |
| IP Rating | IP20 |
| Enclosure Type | NEMA 1 |
| Language Type | English |
| HIM Type | Programmer/Controller with Digital Pot |
| EMC Filter | Available |
| Control Interface | TTL Contact |
| Minimum Storage Temperature | -40 °C |
| Maximum Storage Temperature | 70 °C |
| Installation Altitude | 1000 m |
The 1336F-BRF30-AE-EN-HAS2-L4, a product by Allen Bradley within the 1336 PLUS II Drives series, is engineered as an adjustable frequency AC drive. It accommodates an AC voltage range from 380 to 480 volts and supports a DC voltage range of 513 to 620 volts, making it suitable for varied applications in industrial settings.
With a power rating of 3 Hp, this drive efficiently manages moderate electrical loads. The combination of an IP20 rating and a NEMA 1 enclosure type ensures that the unit operates effectively in typical indoor environments. Users will find the drive equipped with an English language interface, enhancing its usability in English-speaking settings.
The device features a programmer/controller with a digital potentiometer that simplifies adjustment and monitoring. An EMC filter is also available to support the reduction of electromagnetic interference, ensuring smoother operation in sensitive environments. The control interface operates through TTL contacts, providing reliable communication and integration with other systems.
Storage conditions for the drive range from a minimum of -40 °C to a maximum of 70 °C, allowing for applicable use in a wide variety of climates. It can be installed at altitudes reaching up to 1000 meters, meeting requirements for many operational scenarios. Overall, the 1336F-BRF30-AE-EN-HAS2-L4 offers a well-rounded selection of features for effective frequency control in industrial applications.
| Revision Part # | Also known as | |
|---|---|---|
| 1336F-BRF30-AE-EN-HAS2-L4 Ser A | 1336F-BRF30-AE-EN-HAS2-L4/A, Series A, Rev A | |
| Don't see your particular revision? Contact us now. | ||
- 1336F-8RF30-AE-EN-HAS2-L4
- 1336F-BRF30-AE-EN-HAS2-LA
- 1336F-BRF3O-AE-EN-HAS2-L4
- 1336F8RF30AEENHAS2L4
- 1336FBRF30AEENHAS2L4
- 1336FBRF30AEENHAS2LA
- 1336FBRF3OAEENHAS2L4
- I336F-8RF3O-AE-EN-HAS2-LA
- I336F-BRF30-AE-EN-HAS2-L4
- I336F8RF3OAEENHAS2LA
- I336FBRF30AEENHAS2L4
This 1336F PLUS Adjustable Frequency AC drive is a 380-480VAC or 513-620V DC unit with 2.2 (3) kilowatts(horsepower) and has a(n) IP 20 (NEMA 1)/EMC enclosure. This unit is in the English language. Mods: [Programmer/Controller w/Digital Pot] , [TTL Contact]
