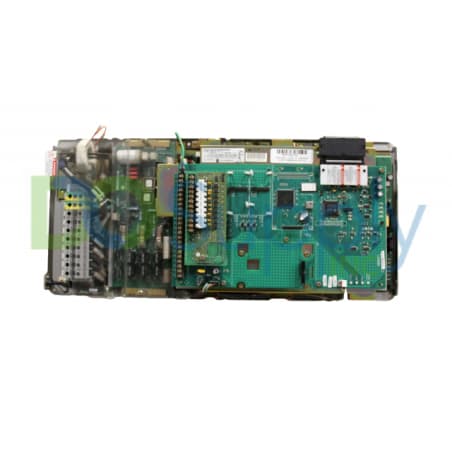

Allen Bradley 1336 PLUS II Drives 1336F-BX060-AX-EN-L6

Product image is representative; revision or series may vary. Contact us to request a specific version.

1336F-BX060-AX-EN-L6

|
Need a Specific Revision?

The 1336F-BX060-AX-EN-L6 from Allen Bradley is classified as an adjustable frequency AC drive. With a power capacity of 45 kW, it is engineered for efficient motor control in various applications.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1336F-BX060-AX-EN-L6

ManufacturerAllen Bradley
Product TypeAdjustable Frequency AC Drive
Product Line1336 PLUS II Drives
Part Number1336F-BX060-AX-EN-L6
Weight80.00 lbs (36.29 kg)
Power Rating45 kW
Language GroupEnglish
Control Interface Options115 VAC
Installation Altitude1000 m
Min. Operating Temperature0°C
Max. Operating Temperature40°C
Min. Storage Temperature-40°C
Max. Storage Temperature70°C
Min. Relative Humidity5% (non-condensing)
Max. Relative Humidity95% (non-condensing)
Shock Resistance15G peak for 11ms duration (±1.0ms)
Vibration Resistance0.006 inches (0.152 mm) displacement, 1G peak
View as PDF
Request a Repair

The Allen Bradley 1336F-BX060-AX-EN-L6 is a notable adjustable frequency AC drive that provides significant support for motor operations at a power rating of 45 kW. This model includes a control interface that operates on 115 VAC, allowing straightforward integration into various systems. Its design caters to installations at altitudes of up to 1000 meters, ensuring functionality in diverse environments.

Operating conditions are well-defined, with a minimum operating temperature of 0°C and a maximum limit of 40°C. For storage, temperatures can range from -40°C to 70°C, illustrating the device's robustness. Additionally, this drive accommodates relative humidity levels from a minimum of 5% to a maximum of 95%, maintaining performance in non-condensing conditions.

The unit's construction includes features that withstand environmental stresses, including a shock resistance rating of 15G peak for 11 milliseconds, enhancing durability during operations. Vibration resistance is also a critical specification, with the drive capable of handling displacements of 0.006 inches (0.152 mm) at a 1G peak. Overall, the 1336F-BX060-AX-EN-L6 drive represents a capable choice for demanding industrial applications requiring reliable and adaptable performance.

Revision Part #Also known as
1336F-BX060-AX-EN-L6 Ser A1336F-BX060-AX-EN-L6/A, Series A, Rev A
1336F-BX060-AX-EN-L6 Ser B1336F-BX060-AX-EN-L6/B, Series B, Rev B
Don't see your particular revision? Contact us now.
