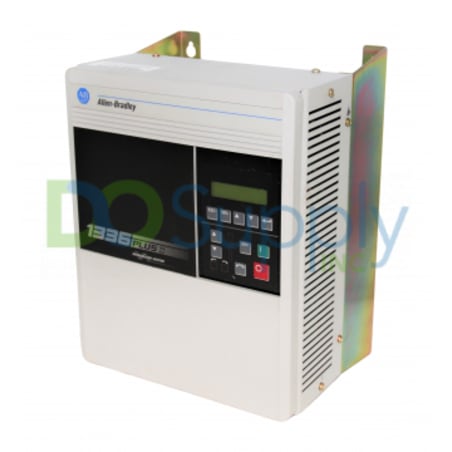

Allen Bradley 1336 PLUS II Drives 1336F-CWF100-AN-EN

Product image is representative; revision or series may vary. Contact us to request a specific version.

1336F-CWF100-AN-EN

|
Need a Specific Revision?

The 1336F-CWF100-AN-EN is a robust adjustable frequency AC drive designed by Allen Bradley. This drive operates effectively with an AC voltage range of 500 to 600 volts and accommodates DC voltage up to 775 volts. It has a notable power rating of 7.5 kW and is constructed with an open-type enclosure.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 1336F-CWF100-AN-EN

ManufacturerAllen Bradley
Product TypeAdjustable Frequency AC Drive
Product Line1336 PLUS II Drives
Part Number1336F-CWF100-AN-EN
Weight35.00 lbs (15.88 kg)
Voltage Rating (AC)500-600 VAC
Voltage Rating (DC)775 VDC
Power Rating7.5 kW
IP ProtectionIP00
Enclosure TypeOpen Type
Language GroupEnglish
Operating Temperature Range0 to 50°C
Storage Temperature Range-40 to 70°C
Relative Humidity5 to 95% (non-condensing)
Shock Resistance15G peak for 11ms duration (±1.0ms)
Vibration Resistance0.006 inches (0.152 mm) displacement, 1G peak
View as PDF
Request a Repair

The Allen Bradley 1336F-CWF100-AN-EN is an adjustable frequency AC drive optimized for various industrial applications. Rated for both AC and DC voltage, this unit functions within an AC range of 500 to 600 VAC and a DC rating of 775 VDC. With a power capacity of 7.5 kW, it is suitable for powering diverse motor types efficiently.

This drive is housed in an open-type enclosure, classified with IP00 protection, making it ideal for indoor usage where direct exposure to fluids and particulates is limited. The operational temperature for this device spans from 0 to 50°C, ensuring stable performance across different climates.

Further enhancing its reliability, the drive can endure storage thermal conditions between -40°C and 70°C. It also supports a humidity range from 5% to 95%, without the risk of condensation affecting performance.

In terms of physical resilience, the 1336F-CWF100-AN-EN drive is designed to resist shocks up to 15G for a duration of 11 milliseconds, providing additional durability for challenging environments. Moreover, it can withstand vibrations, with a displacement limit of 0.006 inches (0.152 mm) at a peak of 1G. This allows the drive to maintain its integrity and performance in industrial settings that may experience mechanical stresses.

Revision Part #Also known as
1336F-CWF100-AN-EN Ser A1336F-CWF100-AN-EN/A, Series A, Rev A
Don't see your particular revision? Contact us now.
