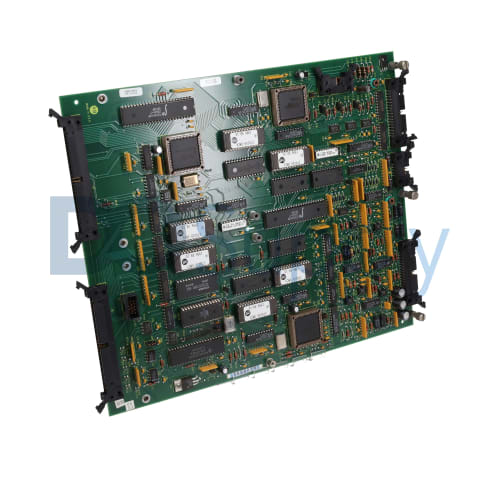

Allen Bradley 1395 Drives 170174

Product image is representative; revision or series may vary. Contact us to request a specific version.

170174

|
Need a Specific Revision?

The 170174 main control board from Allen Bradley's 1395 Drives series is a crucial component designed as a spare part or accessory. It facilitates robust communication and functionality within control systems and includes several essential ports for power and data transfer.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 170174

ManufacturerAllen Bradley
Product TypeMain Control Board
Product Line1395 Drives
Part Number170174
Weight1.38 lbs (0.62 kg)
Spare Part/AccessoryYes
Power Supply PortIncluded
Programming Terminal PortIncluded
Encoder PortIncluded
Adapter Board PortIncluded
Memory Module PortIncluded
Data ExchangeSupported Between Microprocessors
Operating Temperature32 to 104 degrees Fahrenheit
Max. Operating Humidity80% (non-condensing)
Storage Temperature32 to 122 degrees Fahrenheit
Max. Storage Humidity80% (non-condensing)
Max. Operating Altitude1000m above sea level without derating
View as PDF
Request a Repair

Part number 170174 is a main control board integral to Allen Bradley's 1395 Drives series. Designed specifically as a spare part or accessory, this component is essential for ensuring the proper functioning of system operations. The control board comes equipped with various ports to support different functionalities. It includes a power supply port, a programming terminal port, and connections for encoder and adapter boards, along with a memory module port.

This board allows for efficient data exchange between microprocessors, facilitating coordinated control across systems. Operating conditions for the 170174 board allow temperatures between 32°F and 104°F, making it suitable for many environments. It has a maximum operational humidity of 80%, which must be non-condensing to maintain reliable performance.

When it comes to storage, the control board can endure temperatures from 32°F to 122°F while also maintaining the same humidity threshold of 80% (non-condensing). Its design permits installation at altitudes up to 1000 meters above sea level without the risk of derating, offering flexibility for various operational settings. Overall, the 170174 main control board effectively supports and enhances the functionality of Allen Bradley’s 1395 Drives.

Revision Part #Also known as
170174 Ser A170174/A, Series A, Rev A
Don't see your particular revision? Contact us now.
