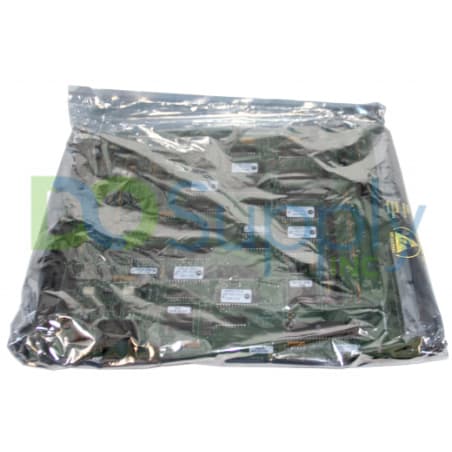

Allen Bradley 1395 Drives SP-196259

Product image is representative; revision or series may vary. Contact us to request a specific version.

SP-196259

|
Need a Specific Revision?

The SP-196259 from Allen Bradley is a dedicated main control board primarily designed for advanced motor control applications. It supports various communication protocols, including EtherNet/IP, Modbus TCP, and PROFINET, facilitating seamless integration within modern industrial networks.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for SP-196259

ManufacturerAllen Bradley
Product TypeMain Control Board
Product Line1395 Drives
Part NumberSP-196259
Weight1.50 lbs (0.68 kg)
Communication ProtocolEtherNet/IP, Modbus TCP, PROFINET
Input Voltage230 V AC nominal
Supported Power1–100 HP
Programming InterfaceTerminal port
ProtectionOvercurrent/overvoltage sensing
Control TypeDigital
Phase3-phase AC input
DiagnosticsOnboard monitoring
ApplicationMotor control & speed regulation
Output CurrentUp to 50 A
Output Voltage0–230 V DC
MountingPCB module
Microbus Ports2 ports
View as PDF
Request a Repair

The SP-196259 main control board by Allen Bradley is engineered for crucial applications in motor management and speed control. It interfaces through various protocols like EtherNet/IP, Modbus TCP, and PROFINET, making it versatile for different network environments. The board is configured to handle a nominal input voltage of 230 V AC and supports a power range suitable for motors from 1 to 100 HP.

In terms of functionality, this control board is driven by a digital control type and supports 3-phase AC input. It ensures protection against overcurrent and overvoltage conditions, safeguarding the connected systems. Diagnostics capabilities are built directly into the board, allowing for onboard monitoring and facilitating troubleshooting processes. The maximum output current capacity reaches up to 50 A, with an adjustable output voltage capability extending from 0 to 230 V DC, allowing for flexible operation tailored to specific motor requirements.

The SP-196259 is designed as a PCB module for straightforward installation and includes two microbus ports that enhance its connectivity options for additional expansion needs. This feature set makes the SP-196259 an essential component for effective motor control and speed regulation within industrial settings.

Revision Part #Also known as
SP-196259 Ser ASP-196259/A, Series A, Rev A
Don't see your particular revision? Contact us now.
