2080-LC70-24AWB

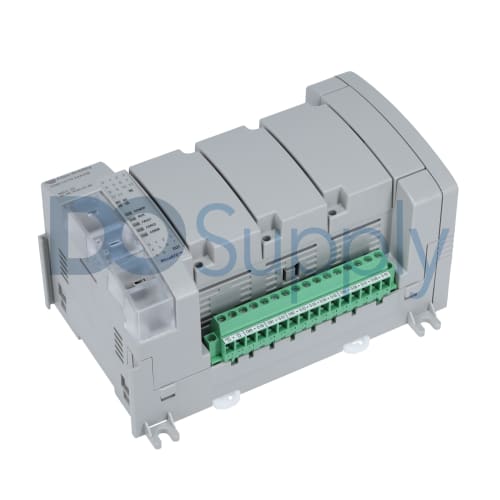

The 2080-LC70-24AWB EtherNet/IP controller is manufactured by Allen-Bradley/Rockwell Automation as part of the Micro870 product line. This controller has a wide range of features and specifications that allow it to deliver an optimal performance. They include a slot for an optional power supply, a removable I/O terminal block, and a mounting screw hole and a mounting foot. It also comes with status indicators that show the statuses for the input, output, module, network, power, fault, force, and serial communication. Other features include a DIN rail mounting latch, 40-pin high-speed plug-in connector, USB port (Type-B connector), mode switch, and a slot cover for expansion I/O. The 2080-LC70-24AWB Ethernet/IP controller has an RJ-45 Ethernet connector with embedded green and yellow LED indicators. It also comes with RS-232 and RS-485 non-isolated combo serial ports. This controller and all of the Micro870 controllers have 14 inputs and 10 relay outputs.

The Allen-Bradley 2080-LC70-24AWB Ethernet/IP controller and the entire Micro870 series have a wide range of useful features. These units adhere to the operational needs of a system through a scaling machine and they support 8 expansion input and output modules. They also have 304 digital I/O points and they program devices and connect to the human-machine interfaces seamlessly through the Ethernet/IP network. The 2080-LC70-24AWB controller is a powerful and expandable controller that provides the end-users and machine builders with high levels of customization, flexibility, and scalability. It is designed for use with significant standalone machine applications. It also features a considerable memory capacity that enables a more modular program and user-defined function blocks to be used.
