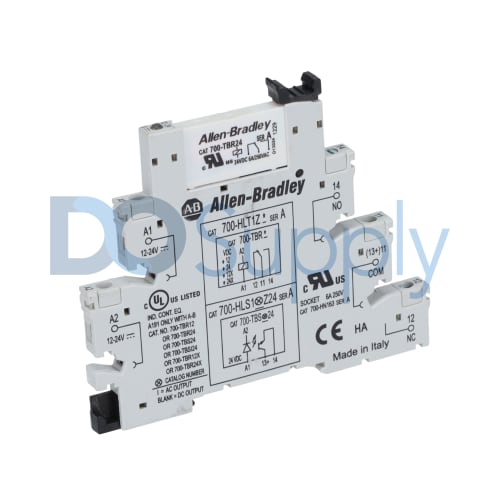

Allen Bradley Bulletin 700 700-TBR24

Product image is representative; revision or series may vary. Contact us to request a specific version.

700-TBR24

|
Need a Specific Revision?

The Allen Bradley 700-TBR24 control relay, part of the Bulletin 700 series, operates with a nominal voltage of 24 V AC and 24 V DC. It provides a rated current of 6.0 A and features contacts made from silver nickel for durability.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 700-TBR24

ManufacturerAllen Bradley
Product TypeControl Relay
Product LineBulletin 700
Part Number700-TBR24
Weight0.06 lbs (0.03 kg)
UPC611320517309
Rated Current6.0 A
Nominal AC Operational Voltage24 V AC
Nominal DC Operational Voltage24 V DC
Rated Operational Current, for AC-16.0 A at 250 V
Rated Load, AC-11500 VA
Rated Operational Current, for AC-15 at 230 V1.3 A
Contact MaterialSilver Nickel
IP RatingIP20
Minimum Storage Temperature-40 °C
Maximum Storage Temperature70 °C
Request a Repair

The Allen Bradley 700-TBR24 is a control relay designed for reliable operation in various applications. This module has a rated current of 6.0 A and operates at nominal voltages of 24 V AC and 24 V DC. It can handle an operational current of 6.0 A at 250 V under AC-1 conditions and supports a load of up to 1500 VA. For applications in AC-15 at 230 V, the rated operational current is noted at 1.3 A.

Constructed with contacts made of silver nickel, this relay ensures efficient performance and durability within its operational envelope. The device meets an IP20 rating, providing a moderate level of protection against dust and contact with solid objects. This makes it suitable for controlled indoor environments.

Designed for versatility in a range of applications, the 700-TBR24 can withstand storage temperatures from -40 °C to 70 °C, rendering it adaptable to different environmental conditions. Its UPC code is 611320517309, enabling easy identification and inventory management.
