4100-204-R

Revisions: Ser A

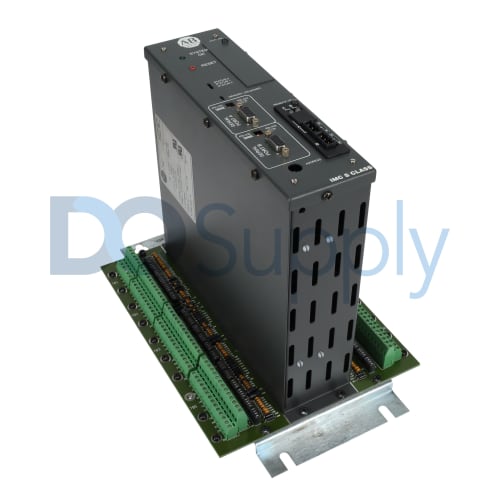

Description: The Allen-Bradley 4100-204-R Basic Motion Controller has 4 Axes, a 5V DC Input Voltage, and 20 Dedicated Discrete Inputs. This unit contains Serial Port and Remote I/O Communication Options.
In Stock Ships Today
Request a quote for 4100-204-R

Description:

The Allen-Bradley 4100-204-R Basic Motion Controller has 4 Axes, a 5V DC Input Voltage, and 20 Dedicated Discrete Inputs. This unit contains Serial Port and Remote I/O Communication Options.


Preowned

Includes a 1-Year DO Supply warranty.

DO Supply is not an authorized distributor for Allen Bradley.

top legal disclaimer
disclaimer
credit cards
better business bureau
Revisions: Ser A

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via UPS, DHL, and TNT
Repairs: We offer repair service for the 4100-204-R.
Exchange: Exchange credit for your defective unit available.
Conditions: We sell preowned surplus and refurbished parts.

To speak to a sales representative for pricing & lead time:


Rated 4.4 with 8 reviews

    Technical Specifications for 4100-204-R

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.4100-204-R
Product TypeBasic Motion Controller
PlatformStand Alone
PackagingBasic
Axes4
Standard CommunicationSerial Port
Communication OptionsSerial Port and Remote I/O
Input Voltage5V DC
Dedicated Discrete Inputs20
Resolution16 bits
I/O Power Input5-40V DC
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 4100-204-R has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 4100-204-R units instead of migration.

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.4100-204-R
Product TypeBasic Motion Controller
PlatformStand Alone
PackagingBasic
Axes4
Standard CommunicationSerial Port
Communication OptionsSerial Port and Remote I/O
Input Voltage5V DC
Dedicated Discrete Inputs20
Resolution16 bits
I/O Power Input5-40V DC
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 4100-204-R has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 4100-204-R units instead of migration.

s

About 4100-204-R

The 4100-204-R is a 4-axis servo motion controller for the IMC-S/23x series of controllers. The 4100-204-R operates on a 5 Volt DC input and has 20 dedicated discrete inputs. It also has serial ports and remote I/O ports for communication purposes. The resolution of the 4100-204-R is around 16 bits. The 4100-204-R remote I/O operation allows the device to communicate with the PLC via the remote I/O link using the discrete and block transfer methods. The 4100-204-R should be installed in a dry and clean location, away from dirt and contaminants. The operating ambient temperature of the environment in which the 4100-204-R B is installed should be between -40 and 70 degrees Celsius and the humidity should be noncondensing between 5 to 95%. The 4100-204-R should be installed in an area where the atmosphere is noncorrosive; this should also be in a non-construction area.



Care should be taken while handling this device and when replacing it. It should be ensured that the controller is installed in accordance with the installation instructions of the manufacturer; contact with the cables should be avoided while the power is ON. If the instructions are not followed, there is a chance of electric shock. This device should be installed and replaced by qualified and trained personnel only. All the internal modules of the 4100-204-R are sensitive to electrostatic discharge, so appropriate safety precautions should be taken before replacing any modules or the controller itself, in order to prevent electrostatic discharge. Appropriate wrist straps are recommended when grounding this module.



Repair Services for 4100-204-R

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your 4100-204-R. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions for 4100-204-R

Please refer to the manual for more information about the 4100-204-R such as the wiring diagrams, data sheets and migration or obsolescence details.

Revision Part # Also Known as Availability
4100-204-R Ser A
4100-204-R/A, Series A, Rev A Request Quote
