4100-234-RL

Rated 4.5 with 2 reviews

Preowned

Includes a 1-Year DO Supply warranty.

DO Supply is not an authorized distributor for Allen Bradley.

top legal disclaimer
top legal disclaimer

credit cards accepted
better business bureau

4100-234-RL

Description: The Allen-Bradley 4100-234-RL is a Compact Motion Controller. It is part of the IMC S Class with stand-alone and compact package, Four (4) axes, Remote I/O (RIO) adapter, with AxisLink Multi-Axis Synchronization link.
In Stock Ships Today
Request a quote for 4100-234-RL

Description: The Allen-Bradley 4100-234-RL is a Compact Motion Controller. It is part of the IMC S Class with stand-alone and compact package, Four (4) axes, Remote I/O (RIO) adapter, with AxisLink Multi-Axis Synchronization link.

Preowned

Includes a 1-Year DO Supply warranty.

DO Supply is not an authorized distributor for Allen Bradley.

top legal disclaimer
disclaimer

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via UPS, DHL, and TNT
Repairs: We offer repair service for the 4100-234-RL.
Exchange: Exchange credit for your defective unit available.
Conditions: We sell preowned surplus and refurbished parts.

To speak to a sales representative for pricing & lead time:


Rated 4.5 with 2 reviews

    Technical Specifications for 4100-234-RL

Motion Control MicroprocessorIntel 80960SB at 16 MHz
Input Voltage90 -132 or 175-264 Volts AC
Communication OptionsSerial Port, AxisLink, and Remote I/O
Standard CommunicationSerial Port
PackagingCompact
PlatformStand Alone
Product TypeCompact Motion Controller
Part Number/Catalog No.4100-234-RL
I/O Power Input5 to 40 Volts DC
Resolution16 bits
Output Range+/- 10 Volts DC
Dedicated Discrete Inputs20
BrandAllen-Bradley
ManufacturerRockwell Automation
Data Storage:Write-lockable battery-backed RAM (Random-Access Memory) with 10 year (minimum) battery life for cam table and default user variable values
Application Storage:Write-lockable battery-backed RAM (Random-Access Memory) with 10 year (minimum) battery life for application program (32K) and setup parameter values
Number of User Variables2,000 user-definable; values stored as 64-bit floating point numbers
Number of Electronic Cam13,000 Master Cam points and 13,000 Slave Cam points
Profile Points(26,000 Total Cam points)
Axes4
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 4100-234-RL has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 4100-234-RL units instead of migration.

Motion Control MicroprocessorIntel 80960SB at 16 MHz
Input Voltage90 -132 or 175-264 Volts AC
Communication OptionsSerial Port, AxisLink, and Remote I/O
Standard CommunicationSerial Port
PackagingCompact
PlatformStand Alone
Product TypeCompact Motion Controller
Part Number/Catalog No.4100-234-RL
I/O Power Input5 to 40 Volts DC
Resolution16 bits
Output Range+/- 10 Volts DC
Dedicated Discrete Inputs20
BrandAllen-Bradley
ManufacturerRockwell Automation
Data Storage:Write-lockable battery-backed RAM (Random-Access Memory) with 10 year (minimum) battery life for cam table and default user variable values
Application Storage:Write-lockable battery-backed RAM (Random-Access Memory) with 10 year (minimum) battery life for application program (32K) and setup parameter values
Number of User Variables2,000 user-definable; values stored as 64-bit floating point numbers
Number of Electronic Cam13,000 Master Cam points and 13,000 Slave Cam points
Profile Points(26,000 Total Cam points)
Axes4
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 4100-234-RL has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 4100-234-RL units instead of migration.

s

About 4100-234-RL

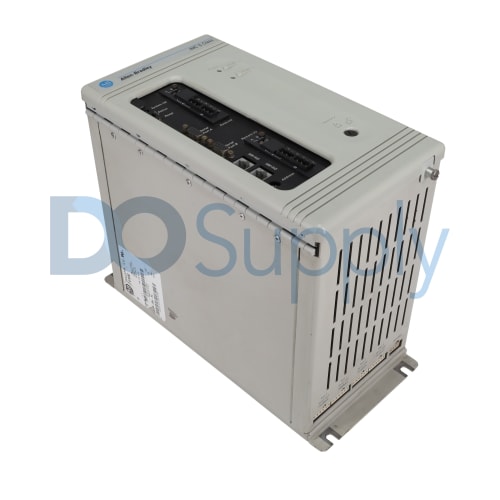

The 4100-234-RL is a Compact Motion Controller from Allen-Bradley. It is part of the IMC S Class microprocessor-based controllers. This motion controller is capable of controlling up to Four (4) axes of closed loop, point-to-point positioning of drive systems. This motion controller is also capable of being set with profiles such as trapezoidal, parabolic, or S-curve as well as velocity, acceleration, and deceleration control. It can also be configured with multi-axis linear, circular, or helical interpolation.

The 4100-234-RL and the entire IMC S Class motion controller is programmed and configured using the Graphical Motion Language (GML). More that 100 are provided which can be used by the user fully customized operation. Programs developed with the GML software may be downloaded through the embedded RS232 or RS422 communication interface of the Compact motion controller.

The 4100-234-RL is a stand-alone and compact unit which supports up to Four (4) axes. It has a built-in Remote I/O (RIO) adapter for communication with other Allen-Bradley RIO capable devices such as a Programmable Logic Controller (PLC). It is also equipped with AxisLink Multi-Axis Synchronization link.

The 4100-234-RL microprocessor is an Intel 80960SB @ 16 MHz. It has an application storage that is 32 KB Write-lockable battery-backed Random-Access Memory (RAM) used for application and configuration of parameter values. Additionally, it also has a Write-lockable battery-backed Random Access Memory (RAM) data storage that is used for storing cam table and default user variable values.

The 4100-234-RL is powered by an external supply voltage of 90 – 132 or 175 – 264 Volts AC, with frequency of 47 – 63 Hz while the I/O input power requires 5 – 40 Volts DC, 24 Volts DC nominal, 3 Amperes maximum.

Program applications and user default setting is done using the Graphic Motion Controller Language, and the programmed applications and user parameters are downloaded to the write-protected battery-backed internal storage memory via the unique RS-232C and RS-422 serial ports. It uses an AC and I/O power supply with 90-132V AC at 47-63HZ and 3A current, and 5-40V DC, 3A current. Connecting the 4100-234-RL to the flex I/O modules provide extended discrete I/O input and output features, like the 20 isolated dedicated discrete inputs, and the 8 optically-isolated, solid state open relay outputs. It has a functional temperature limit of -40 deg. Celsius -70 deg. Celsius and a maximum relative humidity range of 5-95% non-condensing.

FAQ for 4100-234-RL

How many axes does the 4100-234-RL supports?


The 4100-234-RL supports up to Four (4) axes of closed-loop, point-to-point positioning.

What are the compatible encoder for use with the 4100-234-RL?


Compatible encoder is Incremental AB quadrature; optically isolated, differential with marker channel with interface IC AM26LS32 or equivalent.

What is the embedded communication interface of the 4100-234-RL?


The 4100-234-RL has a Remote I/O adapter capability.

Technical Description of 4100-234-RL

The Allen-Bradley 4100-234-RL Compact Motion Controller has 4 Axes, a 90 -132 or 175-264V AC Input Voltage, and 20 Dedicated Discrete Inputs. This unit contains Serial Port, AxisLink, and Remote I/O Communication Options.

Repair Services for 4100-234-RL

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your 4100-234-RL. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions for 4100-234-RL

Please refer to the manual for more information about the 4100-234-RL such as the wiring diagrams, data sheets and migration or obsolescence details.

Revision Part # Also Known as Availability
4100-234-RL Ser A
4100-234-RL/A, Series A, Rev A Request Quote
4100-234-RL Ser B
4100-234-RL/B, Series B, Rev B Request Quote
4100-234-RL Ser C
4100-234-RL/C, Series C, Rev C Request Quote
4100-234-RL Ser D
4100-234-RL/D, Series D, Rev D Request Quote
4100-234-RL Ser E
4100-234-RL/E, Series E, Rev E Request Quote
4100-234-RL Ser F
4100-234-RL/F, Series F, Rev F Request Quote
4100-234-RL Ser G
4100-234-RL/G, Series G, Rev G Request Quote
4100-234-RL Ser H
4100-234-RL/H, Series H, Rev H Request Quote
4100-234-RL Ser I
4100-234-RL/I, Series I, Rev I Request Quote
4100-234-RL Ser J
4100-234-RL/J, Series J, Rev J Request Quote
4100-234-RL Ser K
4100-234-RL/K, Series K, Rev K Request Quote
4100-234-RL Ser L
4100-234-RL/L, Series L, Rev L Request Quote
4100-234-RL Ser M
4100-234-RL/M, Series M, Rev M Request Quote
4100-234-RL Ser N
4100-234-RL/N, Series N, Rev N Request Quote
4100-234-RL Ser O
4100-234-RL/O, Series O, Rev O Request Quote
4100-234-RL Ser P
4100-234-RL/P, Series P, Rev P Request Quote
Common misspellings:
  • A100-234-RL
  • 4l00-234-RL
  • 41o0-234-RL
  • 410o-234-RL
  • 4100-23A-RL
  • 4100-234-R1
  • 4100234RL

Reviews for 4100-234-RL

Internal Review

"The 4100-234-RL is a Four-axes compact motion controller that is part of the microprocessor-based IMC S Class motion controllers. It can control up to Four (4) axes of closed loop, point-to-point control compared to the 4100-232-RL which only supports Two (2) axes. With a microprocessor installed, this compact motion controller can perform motion control at an efficient response time. Additionally, with the compact assembly, this controller saves important panel space it only measures 13.5” (H) x 6.13” (W) x 10.38” (D). " -DO Supply Tech
