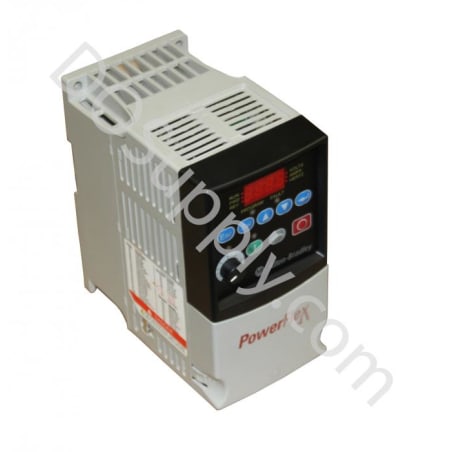

Allen Bradley PowerFlex 4 22A-A1P5F104

Product image is representative; revision or series may vary. Contact us to request a specific version.

22A-A1P5F104

|
Need a Specific Revision?

The 22A-A1P5F104 AC drive is an Allen-Bradley/Rockwell Automation PowerFlex 4 AC drive. It does not come with a filter like some of the other PowerFlex 4 series drives have. The 22A-A1P5F104 AC drive is designed to operate at 240 Volts AC 1-phase input voltage and at 50 to 60 Hertz frequency. It can be controlled through a small keypad on the front panel. The 22A-A1P5F104 AC drive can be flange mounted inside an IP 20 rated enclosure for protection.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 22A-A1P5F104

ManufacturerAllen Bradley
CategoryDrives
Product LinePowerFlex 4
Part Number22A-A1P5F104
Weight3.00 lbs (1.36 kg)
Amperage1.5
Enclosure TypeFlange-Mounted
FilterWithout CE Compliant Filter
Phase1 Phase
Wattage.2 Kilowatt
Input TypeKeypad
DisplayLight-Emitting Diode (LED)
Horsepower1/4 Horsepower
Input Power200-240 Volts AC
Brake DriveBrake Drive
View as PDF
Request a Repair

The Allen-Bradley 22A-A1P5F104 is a PowerFlex 4 AC Drive which features an integral keypad that does not need programming, can operate straight out of the box, and it comes with a potentiometer and control keys. This drive is designed to meet the demands of end-user and global OEM for simplicity and cost-efficiency. It is the best alternative for controlling the speed of devices such as fans, machine tools, conveyors, pumps, and material system handing. The 22A-A1P5F104 is the smallest and most cost cost-effective of Allen-Bradley’s PowerFlex drives.

The 22A-A1P5F104 is known for versatility in programming, complete network solutions, and communication. It rarely has problems and is compatible with any device that is a standard support 03, a commander RTU, or a master RTU. The 22A-A1P5F104 features an integral RS-485 converter module that can connect to any controller with a DFI port. It can also support RS-485 communications by using a PC. The Allen-Bradley 22A-A1P5F104 makes programming fast and easy with its 10 application parameters, 4-digit display, and 10 LED indicators for displaying drive status information. It runs on 200 to 240 Volts single-phase AC Power at 50 to 60 Hertz, 0.2 kW, 0.25 Horsepower, and 1.5 Amps with an IP20 flange mount.

Revision Part #Also known as
22A-A1P5F104 Ser A22A-A1P5F104/A, Series A, Rev A
Don't see your particular revision? Contact us now.
