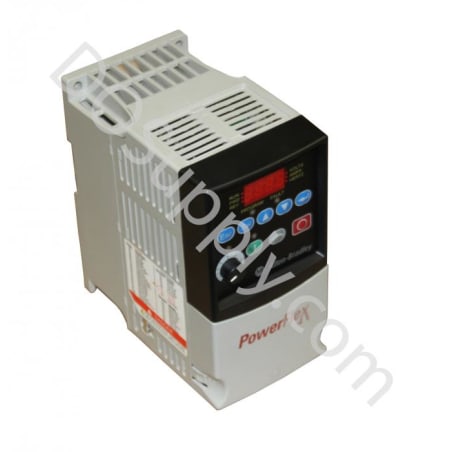

Allen Bradley PowerFlex 4 22A-A1P5H204

Product image is representative; revision or series may vary. Contact us to request a specific version.

22A-A1P5H204

|
Need a Specific Revision?

The Allen-Bradley/Rockwell Automation 22A-A1P5H204 drive is an AC-powered adjustable drive. It has been designed and manufactured as a member of the Allen-Bradley PowerFlex 4 series. The 22A-A1P5H204 AC drive operates with a 1-phase AC voltage rating of 240 Volts AC at 50 to 60 Hertz frequency. Its current rating is 1.5 Amps. The 22A-A1P5H204 AC drive does not come with a CE-compliant filter.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 22A-A1P5H204

ManufacturerAllen Bradley
CategoryDrives
Product LinePowerFlex 4
Part Number22A-A1P5H204
Weight3.00 lbs (1.36 kg)
Amperage1.5
Enclosure TypeIP20 (Without Heatsink)
FilterWithout CE Compliant Filter
Phase1 Phase
Wattage.2 Kilowatt
Input TypeKeypad
DisplayLight-Emitting Diode (LED)
Horsepower1/4 Horsepower
Input Power200-240 Volts AC
Brake DriveBrake Drive
View as PDF
Request a Repair

The Allen-Bradley 22A-A1P5H204 is a PowerFlex 4 drive which provides speed control to conveyors, fans, material handling systems, machine tools, and pumps. It features an integral keypad with control keys and local potentiometer. This can be activated right out of the box because no programming is necessary. The 22A-A1P5H204 is designed to meet user needs and global OEM such as cost efficiency and simplicity. It is the smallest and the most cost-effective Allen-Bradley PowerFlex Drive.

The 22A-A1P5H204 features a serial module converter that provides and maintains connectivity. It also has integral RS-485 communication to any available controller with a DFI port. This product is known for having one of the best network solutions, versatility on communications, and programming. The 22A-A1P5H204 PowerFlex is compatible with any device that supports a master RTU, a command RTU, and support standard 03. The 22A-A1P5H204 PowerFlex 4 Drive has 200 to 240 Volts AC single-phase power at 50 to 60 Hertz, 0.2 kW, 0.25 Horsepower, and 1.5 Amps. It comes with several mounting options and an ambient temperature of up to 50 degrees Celsius. The 22A-A1P5H204 comes with a DIN rail mounting feature that makes installation easy on A and B drive frames. Panel mounting is also possible.

Revision Part #Also known as
22A-A1P5H204 Ser A22A-A1P5H204/A, Series A, Rev A
Don't see your particular revision? Contact us now.
