22A-A2P3N114

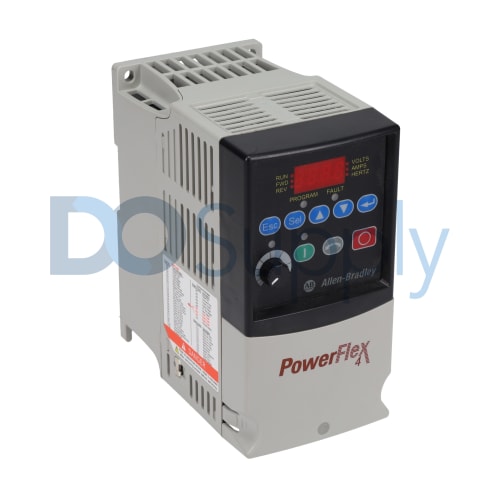

The Allen-Bradley 22A-A2P3N114 is a PowerFlex 4 AC inverter drive. It is a 1-phase drive with an EMC filter and it comes with a 4-digit digital display and an active integral keypad that lets users operate the drive “out of the box.” The 22A-A2P3N114 also comes with 10 common applications from the basic program group and they reduce programming time. The drive also features a flying start and auto restart functions and zero stacking, which lets drives be mounted side by side with no space between, saving panel space. The entire drive measures 5.98 x 3.15 x 5.35 inches.

The 22A-A2P3N114 drive has 10 LED status indicators which let the users monitor the status of the applications in real time, It has a size A frame, RS485 control, and a fixed terminal block. An overload of 150% for 60 seconds and 200% for 3 seconds is also available. This drive comes with a 0.4 kW or 0.5 Horsepower power rating. It also has an output current rating of 2.3 Amps and a frequency rating of 50 to 60 Hertz. The input power of the 22A-A2P3N114 drive ranges from 200 to 240 Volts AC. In terms of relay contact, it has a resistive rating of 3 Amps at 30 Volts DC and 125 to 240 Volts AC and an inductive rating of 0.5 Amps at 30 Volts DC and 125 to 240 Volts AC. The operating altitude of the drive is 1000 meters, its operating shock is 15 g for 11 milliseconds, and its operating vibration is 1 g at 5 to 2000 Hertz. This drive also has a storage temperature range of -40 to 85 degrees Celsius.
