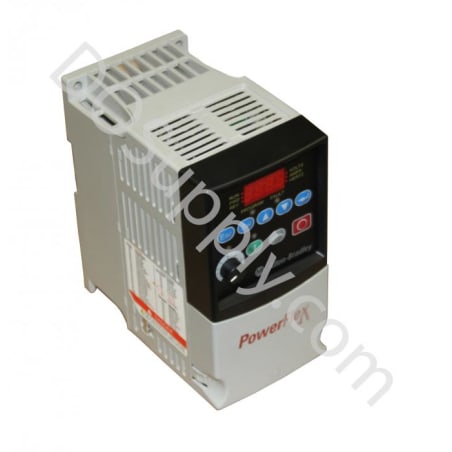

Allen Bradley PowerFlex 4 22A-A4P5H204

Product image is representative; revision or series may vary. Contact us to request a specific version.

22A-A4P5H204

|

The Allen-Bradley 22A-A4P5H204 drive is an AC-powered adjustable frequency drive. It has been designed and manufactured as part of the Allen-Bradley PowerFlex 4 series. The 22A-A4P5H204 adjustable frequency drive can control the speed or torque of a motor. It operates with a single-phase input voltage rating of 240 Volts AC at 50 to 60 Hertz. Its output current rating is 4.5 Amps. The 22A-A4P5H204 adjustable frequency drive has an output power rating of 0.75 kilowatts or 1 Horsepower.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 22A-A4P5H204

ManufacturerAllen Bradley
CategoryDrives
Product LinePowerFlex 4
Part Number22A-A4P5H204
Weight3.13 lbs (1.42 kg)
Amperage4.5
Enclosure TypeIP20 (Without Heatsink)
FilterWithout CE Compliant Filter
Phase1 Phase
Wattage.75 Kilowatt
Input TypeKeypad
DisplayLight-Emitting Diode (LED)
Horsepower1 Horsepower
Input Power200-240 Volts AC
Brake DriveBrake Drive

The Allen-Bradley 22A-A4P5H204 is a PowerFlex 4 drive. Its voltage rating is 240 Volts AC in one phase with an output current of 4.5 Amps and power of 0.75 kW (1.0 Horsepower). The 22A-A4P5H204 is an IP20 replacement plate drive (NEMA Type: open.) It does not have a fixed keypad or emissions filter. However, it does have a dynamic brake resistor with a resistance of at least 48 ohms for a single-phase 120-volt 50 to 60 Hertz input voltage.

The drive has an IGBT brake with RS-485 communication equipment. The 22A-A4P5H204 can mount on a DIN rail or panel. It weighs 2 pounds and its dimensions are 6.8 inches by 4.1 inches by 3.7 inches.

Revision Part #Also known as
22A-A4P5H204 Ser A22A-A4P5H204/A, Series A, Rev A
Don't see your particular revision? Contact us now.
