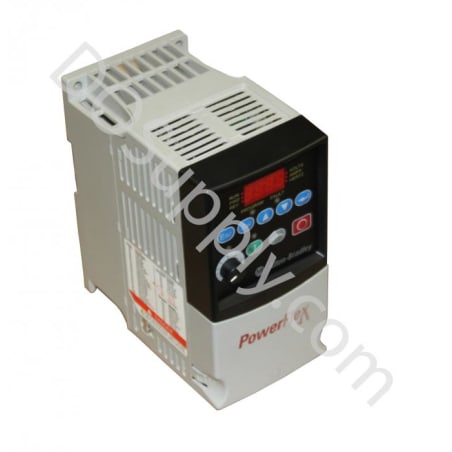

Allen Bradley PowerFlex 4 22A-B1P5H204

Product image is representative; revision or series may vary. Contact us to request a specific version.

22A-B1P5H204

|
Need a Specific Revision?

The 22A-B1P5H204 adjustable frequency drive is an Allen-Bradley/Rockwell Automation PowerFlex 4 series adjustable frequency drive. It is designed to operate with 3-phase AC input voltage. The input voltage rating of the 22A-B1P5H204 adjustable frequency drive is 240 Volts AC at 50 to 60 Hertz of rated frequency. Its output current rating is 1.5 Amps. The 22A-B1P5H204 adjustable frequency drive comes with a brake and with a control keypad.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 22A-B1P5H204

ManufacturerAllen Bradley
CategoryDrives
Product LinePowerFlex 4
Part Number22A-B1P5H204
Weight3.00 lbs (1.36 kg)
Amperage1.5
Enclosure TypeIP20 (Without Heatsink)
FilterWithout CE Compliant Filter
Phase3 Phase
Wattage.2 Kilowatt
Input TypeKeypad
DisplayLight-Emitting Diode (LED)
Horsepower.25 Horsepower
Input Power200-240 Volts AC
Brake DriveBrake Drive
View as PDF
Request a Repair

The Allen Bradley 22A-B1P5H204 of the PowerFlex 4 series of drives, is designed to meet global OEM and end-user demands for space saving, as well as to maximize simplicity and cost efficiency. While this three-phase drive does not contain a CE Compliant Filter, some of its key features include an integral input keypad with a local potentiometer that comes with control keys that are active out of the box. This module’s display is an LED display (Light-Emitting Diode), and this module has a Brake Drive.

The 22A-B1P5H204  drive can provide users with more powerful motor speeds in a compact space saving design, also known as one of the smallest and most cost-effective members of the PowerFlex family.

This module has a power rating of 200 to 240 Volts AC, with 0.2 to 15 kW at 0.25 to 20 Hp, with an Amperage of 1.6 to 62.1 at a frequency between 50 and 60 Hertz.

Additional features offered in the 22A-B1P5H204 drive include a wide range of motor control such as Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), and Sensorless Vector Control with Economize mode. Low-cost networking for this module is integrated through an RS-485 DSI port, which allows the user to quickly upload and download files through a USB connection.

The ambient temperature range that this module should be kept in is around -20 to 50 degrees Celsius.

Revision Part #Also known as
22A-B1P5H204 Ser A22A-B1P5H204/A, Series A, Rev A
