22A-B4P5H204

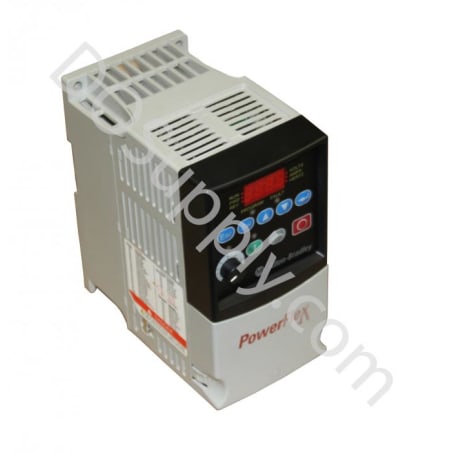

The 22A-B4P5H204 PowerFlex 4 adjustable frequency drive provides unique control over machine and appliance speed. Through the HMI keypad and LED display, users can interface and control the drive’s modes. The drive has a motor rating of 1.5 kW (2.0 Horsepower) with an output current of 4.5 AmPS. It has a 3-phase 200 to 240 Volts AC input voltage and a current of 5.7 Amps alongside an apparent power of 4.0KVA. The 22A-B4P5H204 has a 140M-C2E-B63 motor protector and a 100-C099 contactor with 10 fuses.

Along its circuit wire, it dissipates power at 60W. The 22A-B4P5H204 is a drive with a programmable frequency of 0 to 240 Hertz, and an efficiency of 97.5%. It has a changeable source (18 to 24 Volts/0 to 6 Volts, ON/OFF), and source digital control input mode (0 to 6 Volts /18 to 24 Volts, ON/OFF) which is set through a DIP switch. It has an analog control input with 0 to 10 Volts DC (analog control) at 100ka input impedance. It also has a programmable control output with a resistive rating of 3.0 Amps at 125 to 240 Volts AC and an inductive rating of 0.5 Amps at 125 to 240 Volts AC. It is equipped with the current per time of 150% around 60 seconds, 200% for 3 seconds overload protection, and a 200% hardware limit, 300% instantaneous fault overcurrent protection. It also features under and over voltage protection, and internal IGBT brakes. The 22A-B4P5H204 has an operational shock rating of 15G (maximum), and vibrate at a frequency of 5 to 2000 Hertz at 1G. It has a total weight of 0.91 kilograms and dimensions of 175 by 104.8 by 94 millimeters.
