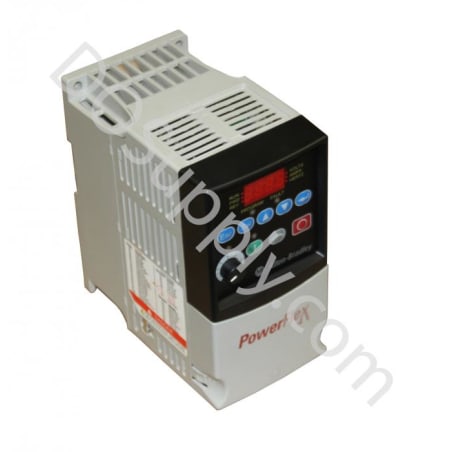

The Allen-Bradley 22A-D4P0F104 PowerFlex4 adjustable frequency drive is an electronic device which provides users with full control of machine speed and allows a smooth interface with the machine through its HMI, fixed keypads, and its special LED display. The 22A-D4P0F104 is a three-phase, frame A drive with a motor rating of 1.5 kW (2 Horsepower) and an input voltage from 340 to 528 Volts AC with 5.7 Amps current. It has an operational efficiency of 97.5%, and a programmable input/output control frequency of 0 to 240 Hertz. It has one digital and one analog input control with a programmable output control.

The digital control input of the 22A-D4P0F104 can set to either sink mode (0 to 6 Volts = ON/18 to 24 Volts = OFF) or source mode (18 to 24 Volts = ON/0 to 6 Volts = OFF) through a unique DIP switch setting. It is a flange**-**mounted, IP20, NEMA/UL (open-type) drive, which dissipates energy at 60W. The programmable output control is a C relay (safety critical relay) with a resistive rating of 3.0 Amps at 125 Volts AC/240 Volts AC and inductive rating of 0.5 Amps at 125 Volts AC/240 Volts AC. The 22A-D4P0F104 has no filter but is equipped with an IGBT internal break. It is protected from a motor overload of about 150% for 60 seconds and 200% for 3 seconds. It also features protection against overcurrent at a 200% hardware limit and an overvoltage/under voltage protection. It has an approximate weight of 2.49 kilograms (5.5 pounds), and dimensions of 8.27 by 6.89 by 2.15 inches.
