22A-V4P5F104

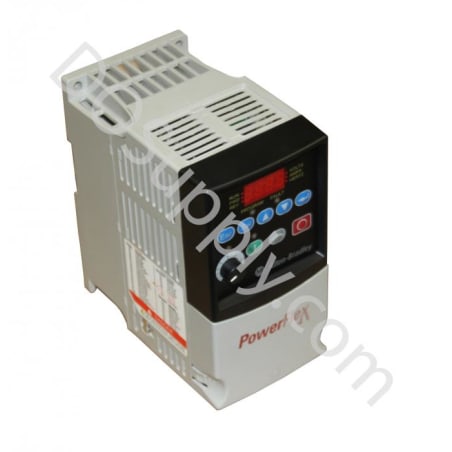

The 22A-V4P5F104 power flex4 by Allen-Bradley offers motor speed control and comes in an elegant and compact design. It provides the user with an integrated LED display alongside a keypad for control of the system mode. It is an AC 1-phase frame A drive with an output voltage range of 100-120V AC and a power rating of 0.2KW (0.25HP). It has an output current of 1.5A and possesses IGBT internal brakes.  The 22A-V4P5F104 communicates with other devices through an RS-485 communication port and has a Flange-Mounted enclosure type. The 22A-V4P5F104 operates at a temperature range of -10-50 oC and it has a 15G shock rate that peaks through a duration of 11ms. It also has an operational vibration of 1G at 5-200Hz. The 22A-V4P5F104 maintains a frequency range of about 2-16 KHz with a 0.05% frequency accuracy. The 22A-V4P5F104 has a built-in output relay that is programmable for resistivity at 3A at 30V. The 22A-V4P5F104, like every powerflex drive, displays protective features. It has a class 10 protection motor protection from overload at 150% for 60 seconds and it may go up to 200% at 3 seconds. It also fitted with an overcurrent protection limit at 200% for most hardware and at 300%, it leads to an instant fault. The 22A-V4P5F104 also has an overvoltage protection feature. The 22A-V4P5F104 has a Frame B enclosure with dimensions of 180mm (7.09in) x 100mm (3.94in) x 136mm (5.35in) and a weight of 2.22KG (4.9lb).
