22A-V6P0F104

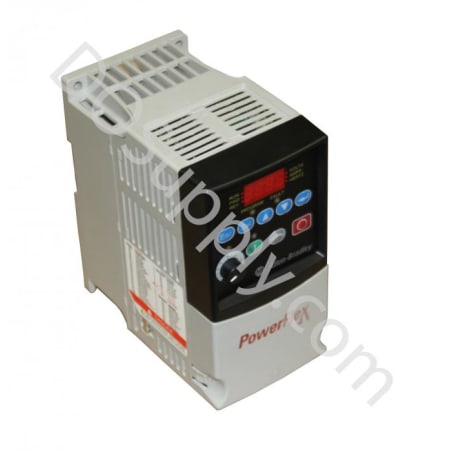

The Allen-Bradley 22A-V6P0F104 PowerFlex4 Adjustable Drive is an adjustable frequency drive in the PowerFlex4 drive family that makes controlling and managing an appliance’s speed easy. It also provides a convenient interface through the fixed keypad, the 4-digit LED display and the colored light indicators. It offers circuit protection through the 140M-F8E-C32 motor protection devices, which protects the drive against 150% motor overload for 60s and against 200% motor overload for 3s. The 22A-V6P0F104 uses a 100-C37 Type contactor with 40 UL Class J class fuses. It also offers overcurrent protection against 200% of the hardware current overload, and against 300% of the instantaneous fault. It offers digital and analog I/O control with a modulation frequency range of 2-16 KHz. The digital input with 6mA can be set at either Sink (0/6V = ON 18/24V = OFF) or Source (18/24V = ON, 0/6V = OFF) by using a DIP switch, and it has 2 analog input controls for the current limiting input and the command input. It also comes with 2 digital outputs: the dedicated C relay output and the selectable transistor-based output with a BRAKE and a DRIVE READY option. The 22A-V6P0F104 has an input voltage rating of 90-126V AC (single-phase) and a current of 24A with 3KVA apparent power. Its output power rating is 1.1Kw (1.5HP), and a current of 6A. it is a flange mount device with 80W of dissipation power in a NEMA Open-Type enclosure, with a functional temperature range of 14 -131 °F, at 5-95% relative humidity without condensation. The 22A-V6P0F104 has shipping dimensions of 3.94in x 7.09in x 5.35in and weighs approximately of 4.9lb.
