22B-B012H204

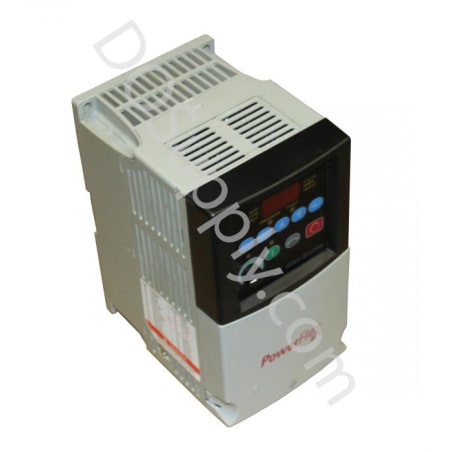

The 22B-B012H204 Power Flex40 AC Adjustable Frequency Drive by Allen-Bradley is a compact and easy-to-use drive with sensorless vector control and an open-loop speed control for enhanced industrial motor control. The drive provides easy interface and control through its integrated fixed keypad and its 4-digit LED display. The 22B-B012H204 has a replacement plate drive mounting option and it comes with a NEMA, IP20 (Heatsinkless)-rated open enclosure, and it has an operational temperature range of –10-55 °C at 5-95% non-condensing relative humidity. The 22B-B012H204 has an operational input voltage range between 180 and 265V AC (3-phase), with a 15.5A input current and an apparent power of 6KVA. It also has a drive output rating of 2.2 KW (3HP) with an output current of 12A. The 22B-B012H204 provides a motor overload protection of 150% overload for 60 seconds and of 200% overload for 3 seconds through the 140M-F8E-C32 motor protector. The 22B-B012H204 drive provides branch circuit protection via the 100-C16 contactor, and it can provide circuit overcurrent protection at 200% hardware limit and 300% instantaneous fault using the 40 UL Class J (type) fuses. The 22B-B012H204 has 2 independently-isolated, 0-10V analog inputs (1 unipolar and 1 bi-polar), and a 0-10V command input with a 100-kilo-ohm input impedance. It also has 3 fixed digital inputs and 4 programmable digital inputs with 6mA input current, and a programmable control frequency range of 0-200Hz. The 22B-B012H204 has a modulation frequency of 16 KHz and a 2% speed regulation, based on a 40-1 speed range. It has dimensions of 125mm x 204mm x 97.5mm (4.92in x 8.03in x 3.84in) and an approximate weight of 1.68 (3.7).
