22B-B024H204

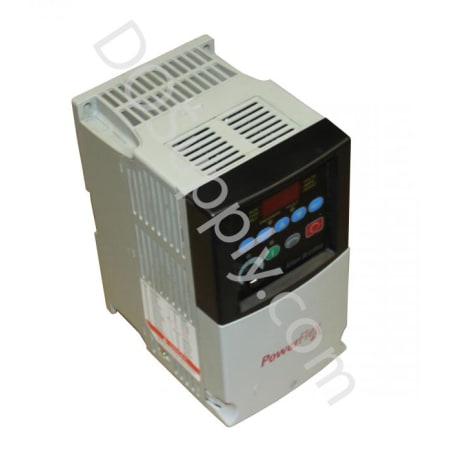

The Allen-Bradley 22B-B024H204 PowerFlex 40 drive is an AC frequency drive that can run without a sensor vector control.  The 22B-B024H204 works with integral communication cards like the PROFIBUS DP, LonWorks, EtherNet/IP, DeviceNet, and the ControlNet cards. This Allen-Bradley PowerFlex 40 device must be used in an environment with an air temperature of 14-122° F. The 22B-B024H204 is integrated with a fixed HIM keypad that works with the unfiltered emission class rating. When coupled with a controller that has a 2-16 kHz carrier frequency range, this PowerFlex 40 is part of the standard classification type. The 22B-B024H204 must be stored at a relative humidity between 0 and 95% (non-condensing). It functions with an open-type replacement plate drive like the IP20, NEMA/UL as its protective enclosure. The Allen-Bradley 22B-B024H204 is engineered to work at 240V AC and in a 3-phase power system. Moreover, it works with 24A current output and 5.5 kW or 7.5 HP power rating output.

The 22B-B024H204 operates at 48-63 Hz and uses a 40A fuse and the 140M-F8E-C32 and 140M motor protectors. It has a maximum rated symmetrical short circuit of 100,000A and 235 Watts of power dissipation. Furthermore, a wireless communication system is also possible with this 22B-B024H204 Frequency AC Drive. This system enables the use of a Pocket PC, laptop, or desktop computer equipped with Bluetooth, and any Allen-Bradley product that supports the DSI protocol.
