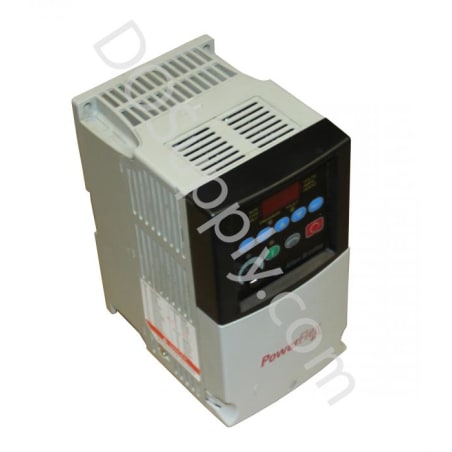

Allen Bradley PowerFlex 40 22B-B5P0H204

Product image is representative; revision or series may vary. Contact us to request a specific version.

22B-B5P0H204

|
Need a Specific Revision?

The 22B-B5P0H204 adjustable frequency drive is an Allen-Bradley/Rockwell Automation adjustable frequency drive from the PowerFlex 40 product line. It is rated at 240 Volts AC 3-phase input voltage and at 50 to 60 Hertz input frequency. The 22B-B5P0H204 adjustable frequency drive has an output current rating of 5 Amps. It supports RS-485 communication but it does not have a built-in CE-compliant filter. The 22B-B5P0H204 adjustable frequency drive can operate at ambient temperatures between 32 and 140 degrees Fahrenheit.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 22B-B5P0H204

ManufacturerAllen Bradley
CategoryDrives
Product LinePowerFlex 40
Part Number22B-B5P0H204
Weight3.00 lbs (1.36 kg)
Voltage240AC Volts
EnclosureReplacement Plate Drive - IP20, NEMA/UL Type Open (Without Heatsink)
HP1 Horsepower
Amperage5.0 A
Phase3 Phase
FilterNo CE Compliant Filter
CommunicationRS-485
Input TypeKeypad
View as PDF
Request a Repair

The Allen-Bradley 22B-B5P0H204 PowerFlex 40 AC Drive has a voltage rating of 200-240V AC and an output current of 2.3A. The 22B-B5P0H204 features volts per hertz and sensorless voltage control systems. This module also has an overload protection feature for the motor and advanced diagnostic features for any possible problem. The Allen-Bradley 22B-B5P0H204 is easy to use with its simple programming and open network architectures and the EtherNet/IP™, DeviceNet™, and ControlNet™. CIPs (Common Industrial Protocols). This module reduces downtime and offers the best flexibility and performance. This module is a 3-phase drive with an output rating of 0.75 kW and 1 Hp. Ensure that all terminal screws are tightened to the recommended torque before applying power to the drive because the terminal screws may become loose during shipment. The operating temperature of the Allen-Bradley 22B-B5P0H204 is 32-140 °F, the storage temperature is -40-185 °F. The maximum surrounding air temperature of this module is 140 °F. The 22B-B5P0H204 has an operating shock of 30 g (3 pulses, 11 ms) and a nonoperating one of 50 g (3 pulses, 11 ms). The 22B-B5P0H204 is enclosed in a IP20 Plate Drive.

Revision Part #Also known as
22B-B5P0H204 Ser A22B-B5P0H204/A, Series A, Rev A
