22B-D017H204

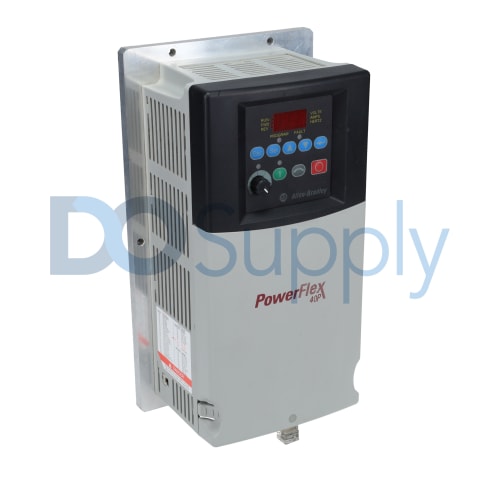

The Allen-Bradley 22B-D017H204 drive is an adjustable frequency drive which can control an Allen-Bradley variable speed motor’s speed and torque. It has been manufactured by Allen-Bradley as a member of the PowerFlex 40 series. The 22B-D017H204 adjustable frequency drive operates with 17 Amps of rated output current and with 480 Volts AC (3-phase) of rated input voltage. It has a brake built into it but no CE-compliant filter. The 22B-D017H204 adjustable frequency drive supports a Horsepower output rating of 10 Horsepower.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for 22B-D017H204
| Manufacturer | Allen Bradley |
|---|---|
| Category | Drives |
| Product Line | PowerFlex 40 |
| Part Number | 22B-D017H204 |
| UPC | 820919142789 |
| Weight | 8.06 lbs (3.66 kg) |
| Voltage | 480AC Volts |
| Enclosure | Replacement Plate Drive - IP20, NEMA/UL Type Open (Without Heatsink) |
| HP | 10 Horsepower |
| Amperage | 17.0 A |
| Phase | 3 Phase |
| Filter | No CE Compliant Filter |
| Communication | RS-485 |
| Input Type | Keypad |
The Allen Bradley 22B-D017H204 is a Three Phase Drive module of the PowerFlex 40 Series with a voltage rating range of 380 480 Volts AC. With a powerful motor speed control and added flexibility, the 22B-D017H204 is designed to meet global Original Equipment Manufacturer and is equipped with an A NEMA/UL Type 4X remote and NEMA/UL Type 1 hand-held LCD keypad. In addition, this module features a popular “copycat” function and integral RS-485 communications that can be used for programming from a PC.
The 22B-D017H204 can also be utilized in a multi-network configuration, providing dynamic braking capabilities with simple brake resistors. It has a sensorless vector control and Autotune features, the module to adapt motor characteristics. This unit can accelerate up to a 150% load.
A device acting as a Master RTU can be paired with this module, which also supports standard 03 and 06 RTU commands. This module has a preset speed of “8” and a control voltage of 24 Volts sink/source. It has 10 Hp and 7.5 kW and is equipped with Brake IGBT.
Weighing in at about 2.59 kilograms (5.7 pounds), this unit measures 284.0 x 155.0 x 108.0 millimeters (11.18 x 6.1 x 4.25 inches) with a Plate Drive enclosure. It can be removed from the front of the enclosure in the case of repairs.
| Revision Part # | Also known as | |
|---|---|---|
| 22B-D017H204 Ser A | 22B-D017H204/A, Series A, Rev A | |
| Don't see your particular revision? Contact us now. | ||
- 228-D017H204
- 228-DOI7H2OA
- 228D017H204
- 228DOI7H2OA
- 22B-D017H20A
- 22B-D017H2O4
- 22B-D0I7H204
- 22B-DO17H204
- 22B-DO17H2O4
- 22BD017H204
- 22BD017H20A
- 22BD017H2O4
- 22BD0I7H204
- 22BDO17H204
- 22BDO17H2O4
The Allen-Bradley 22B-D017H204 AC Drive operates with a 480AC Volts Voltage and 17.0 A. It has 10 Horsepower and a Replacement Plate Drive - IP20, NEMA/UL Type Open (Without Heatsink) Enclosure.
| Width (w/ Mounting Hardware) | 5.1 in. (130 mm) |
|---|---|
| Height (w/ Mounting Hardware) | 10.2 in. (260 mm) |
| Depth | 7.1 in. (180 mm) |
| Mounting Bracket Width | 4.57 in. (116 mm) |
| Mounting Bracket Height | 9.7 in. (246 mm) |
| Weight | 9.5 lb (4.3 kg) |
