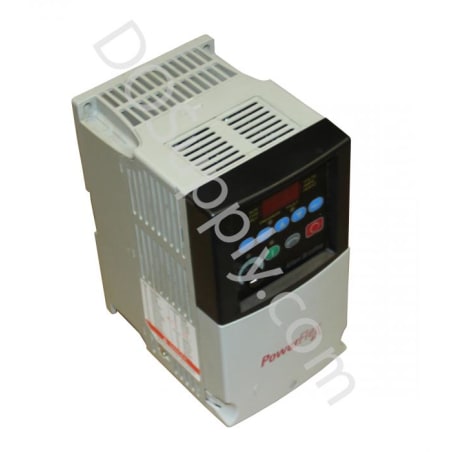

Product image is representative; revision or series may vary. Contact us to request a specific version.
22B-V2P3H204
The 22B-V2P3H204 adjustable frequency drive is a 1-phase AC-powered adjustable frequency drive. It has been designed and manufactured by Allen-Bradley/Rockwell Automation in the PowerFlex 40 series. The 22B-V2P3H204 adjustable frequency drive operates with 120 Volts AC 1-phase input voltage at 50 to 60 Hertz. It can operate at a temperature rating of up to 50 degrees Celsius or 122 degrees Fahrenheit in certain systems and applications and if it is connected to the proper ventilation equipment. The 22B-V2P3H204 adjustable frequency drive supports output power ratings of 0.5 Horsepower or 0.4 kilowatts.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for 22B-V2P3H204
| Manufacturer | Allen Bradley |
|---|---|
| Category | Drives |
| Product Line | PowerFlex 40 |
| Part Number | 22B-V2P3H204 |
| Weight | 2.44 lbs (1.11 kg) |
| Voltage | 120AC Volts |
| Enclosure | Replacement Plate Drive - IP20, NEMA/UL Type Open (Without Heatsink) |
| HP | 0.5 Horsepower |
| Amperage | 2.3 A |
| Phase | 1 Phase |
| Filter | No CE Compliant Filter |
| Communication | RS-485 |
| Input Type | Keypad |
This drive, the 22B-V2P3H204, is a member of the PowerFlex 40 AC drive series, manufactured by Allen Bradley. It is designed to fit into an IP20 Plate Drive enclosure with an adequate gap all around it to provide air circulation. For the same purpose, avoid mounting drives directly on top of one another.
Its dimensions measure approximately 125.0 x 204.0 x 97.5 millimeters (translated to 4.92 x 8.03 x 3.84 inches) with an estimated weight of 1.68 kilograms (translated to 3.7 pounds).
Operating at a frequency of about 50 or 60 Hertz, this unit’s voltage rating lingers between 100 and 120 Volts of AC. It can run up to maximum 0.5 Hp and 0.4 kW with no filter and is designed to be a flexible module that can remain connected for the entirety on an operation. Its various control technology features ranging from torque and precise speed control to open loop speed regulation can optimize any application.
When operating it can reach temperatures of 60 degrees Celsius, or drop as low as freezing (0 degrees Celsius); when placed in storage, it usually remains between -40 and 85 degrees Celsius. This module should be placed in a surrounding air temperature of maximum 60 degrees Celsius. Its shock while operating can reach 30.0 g (3 pulses, 11 milliseconds), and 50.0 g (3 pulses, 11 milliseconds) while not being operated. This module’s vibration is about 5 g at 10 to 500 Hertz.
| Revision Part # | Also known as | |
|---|---|---|
| 22B-V2P3H204 Ser A | 22B-V2P3H204/A, Series A, Rev A | |
| Don't see your particular revision? Contact us now. | ||
- 228-V2P3H204
- 228-V2P3H2OA
- 228V2P3H204
- 228V2P3H2OA
- 22B-V2P3H20A
- 22B-V2P3H2O4
- 22BV2P3H204
- 22BV2P3H20A
- 22BV2P3H2O4
The Allen-Bradley 22B-V2P3H204 AC Drive operates with a 120AC Volts Voltage and 2.3 A. It has 0.5 Horsepower and a Replacement Plate Drive - IP20, NEMA/UL Type Open (Without Heatsink) Enclosure.
