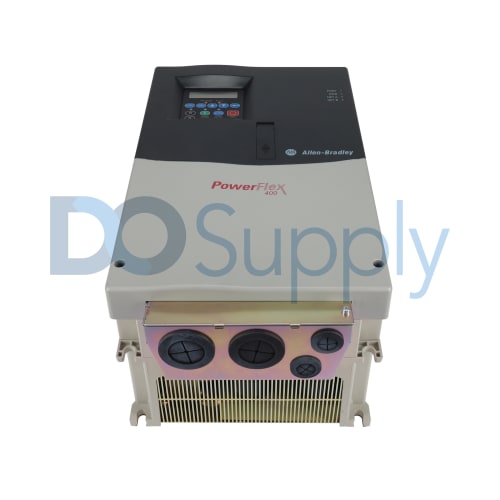

22C-B065A103

Revisions: Ser A
Description: AC Drive 15 KW (20 HP) Powerflex 400
Available Now
Request a quote for 22C-B065A103

Description: AC Drive 15 KW (20 HP) Powerflex 400

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs: We offer repair service for the 22C-B065A103.
Exchange: Exchange credit for your defective unit available.

To speak to a sales representative for pricing & lead time:


Rated 4.7 with 17 reviews

    Technical Specifications for 22C-B065A103

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.22C-B065A103
Product Line Powerflex 400
Drive TypeFan & Pump
Horsepower20
Input Voltage240 Volts AC
PhaseThree-Phase
EnclosurePanel Mount - IP30, NEMA/UL Type 1
Amperage65 Amps
ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.22C-B065A103
Product Line Powerflex 400
Drive TypeFan & Pump
Horsepower20
Input Voltage240 Volts AC
PhaseThree-Phase
EnclosurePanel Mount - IP30, NEMA/UL Type 1
Amperage65 Amps
s

About 22C-B065A103

The Allen-Bradley 22C-B065A103 is a variable frequency AC drive which belongs to the PowerFlex 400 product range. PowerFlex 400 drives are designed for adjustable torque pump and fan applications. The 22C-B065A103 accepts 200-240V AC (±10%) three-phase input. The supported range of input voltage is 180–265V AC and the acceptable range of input frequencies is 48 to 63 Hz. It consumes 28.3 kVA power with a maximum input current of 68 A. The output voltage range for the 22C-B065A103 is 0-230V AC (three-phase). It is rated for 15 kW and 20 HP with an output current rating of 65A (at 45 °C / 50 °C). The control algorithm that is used is Sinusoidal PWM (V/f). The drive overload capacity is 110% for a maximum duration of 1 minute. For the motor output of the drive, Class 10 overload protection is provided on the drive.



The operator interface on the 22C-B065A103 is a fixed keypad which features a two-line LCD with 16 characters worth of display space. The 22C-B065A103 is equipped with an RS-485 serial interface which can be used for drive programming form a computer running DriveExplorer and DriveTools SP. The serial port supports several standard and optional protocols. The standard protocols supported are DSI, Modbus RTU, and P1-FLN. The optional protocols supported are BACnet, DeviceNet, Ethernet, and PROFIBUS. The recommended cable sizes for power block terminations are maximum 33.6 mm2 (2 AWG) and minimum 8.4 mm2 (8 AWG). The 22C-B065A103 is available in a Size D frame in an IP30 rated NEMA/UL Type 1 enclosure. The Size D frame of the 22C-B065A103 has dimensions of 436.2 x 250 x 206.1 mm.  The working temperature range is –10 to 45 °C. The power dissipation by the drive is 650 W. All PowerFlex 400 drives are equipped with a cooling fan.



Repair Services for 22C-B065A103

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your 22C-B065A103. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions for 22C-B065A103

Please refer to the manual for more information about the 22C-B065A103 such as the wiring diagrams, data sheets, firmware information and migration or obsolescence details.

Revision Part # Also Known as Availability
22C-B065A103 Ser A
22C-B065A103/A, Series A, Rev A Request Quote
