22C-D142A103

Revisions: Ser A

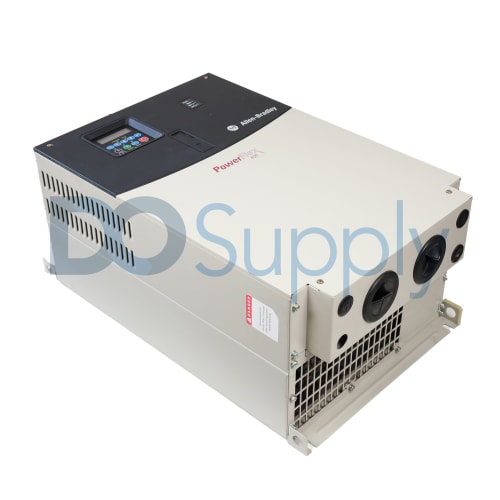

Description: The 22C-D142A103 PowerFlex 400 adjustable frequency AC drive from Allen-Bradley. This drive is specifically designed for industrial fan and pump applications. It has an input voltage requirement of 340-528 Volts AC, 3-Phase, and provides an output voltage of 0-460 Volts AC, 3-Phase. It delivers an output current of 142 Amperes @ 45 degrees Celsius, 128 Amperes @ 50 degrees Celsius, and a power of 100.0 Horsepower or 75.0 Kilowatts. This drive comes with an RS-485 communication interface - it also supports Sinusoidal Pulse Width Modulation (PWM) and Volts/Hertz control.
Available Now
Request a quote for 22C-D142A103

Description: The 22C-D142A103 PowerFlex 400 adjustable frequency AC drive from Allen-Bradley. This drive is specifically designed for industrial fan and pump applications. It has an input voltage requirement of 340-528 Volts AC, 3-Phase, and provides an output voltage of 0-460 Volts AC, 3-Phase. It delivers an output current of 142 Amperes @ 45 degrees Celsius, 128 Amperes @ 50 degrees Celsius, and a power of 100.0 Horsepower or 75.0 Kilowatts. This drive comes with an RS-485 communication interface - it also supports Sinusoidal Pulse Width Modulation (PWM) and Volts/Hertz control.

top legal disclaimer
disclaimer
credit cards
better business bureau
Revisions: Ser A

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs: We offer repair service for the 22C-D142A103.
Exchange: Exchange credit for your defective unit available.

To speak to a sales representative for pricing & lead time:


Rated 4.9 with 18 reviews

    Technical Specifications for 22C-D142A103

ManufacturerRockwell Automation
Input Voltage380-528VAC
Part Number/Catalog No.22C-D142A103
BrandAllen-Bradley
Product Family:PowerFlex 400 for Fan and Pump applications
Input Phase:3-Phase
Input Current:150 A
Output Voltage:0-460VAC
Output Current:142 A @ 45o C; 128 @ 50o C
Output Power:75 HP (55 kW)
Output Frequency:0-320 Hz (programmable)
Carrier Frequency:2…8 kHz, Drive rating based on 4 kHz
Embedded I/O:Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) Open Output; Two (2) Form C Contacts Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: Two (2) Analog Input 0-10VDC; 0- 20mA
Installation:Panel Mount
Enclosure Rating:IP20 / NEMA UL Open Type
Control Method:Sinusoidal PWM; Volts / Hertz
Configuration software:DriveExplorer; DriveTools SP; Connected Components Workbench;
Built-in communication port:RS485
Product LinePowerflex 400
Drive TypeFan & Pump
Horsepower100
PhaseThree-Phase
EnclosurePanel Mount - IP30, NEMA/UL Type 7
Amperage142 Amps
CommunicationModbus RTU, P1-Floor, FLN, Metasys N2, and DSI.
Frame SizeE
Power Dissipation2043 Open IP20 Watts
Flange MountNone
ManufacturerRockwell Automation
Input Voltage380-528VAC
Part Number/Catalog No.22C-D142A103
BrandAllen-Bradley
Product Family:PowerFlex 400 for Fan and Pump applications
Input Phase:3-Phase
Input Current:150 A
Output Voltage:0-460VAC
Output Current:142 A @ 45o C; 128 @ 50o C
Output Power:75 HP (55 kW)
Output Frequency:0-320 Hz (programmable)
Carrier Frequency:2…8 kHz, Drive rating based on 4 kHz
Embedded I/O:Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) Open Output; Two (2) Form C Contacts Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: Two (2) Analog Input 0-10VDC; 0- 20mA
Installation:Panel Mount
Enclosure Rating:IP20 / NEMA UL Open Type
Control Method:Sinusoidal PWM; Volts / Hertz
Configuration software:DriveExplorer; DriveTools SP; Connected Components Workbench;
Built-in communication port:RS485
Product LinePowerflex 400
Drive TypeFan & Pump
Horsepower100
PhaseThree-Phase
EnclosurePanel Mount - IP30, NEMA/UL Type 7
Amperage142 Amps
CommunicationModbus RTU, P1-Floor, FLN, Metasys N2, and DSI.
Frame SizeE
Power Dissipation2043 Open IP20 Watts
Flange MountNone
s

About 22C-D142A103

Allen Bradley’s AC Powerflex Drive 22C-D142A103 is designed to be configured using the Connected Components Workbench (CCW), DriveExplorer, and DriveTools SP. These programs allow the 22C-D142A103 to be parameterized, enabling speed control of motors. With features such as online and offline programming, modification of the terminal’s parameters, and the ability to save parameter information greatly improving the drive’s functionality. Additionally, these programs make it possible to download and upload the unit’s parameters. This module also supports several other types of software, including Pocket PC (or Windows Mobile 2003), as well as Windows Based. Built into this unit is a control loop knows as PID (short for Proportional, Integral, Differential). This control loop holds a variable at a certain point, which can be set by the user. For example, the user could set the flow or pressure of an operation to a certain point; the PID loop will then ensure that the value does not change. It will also detect mistakes in an operation and avoid them in the future. The 22C-D142A103 has another feature called Auxiliary Motor Control. What this feature allows is the addition of three auxiliary motors, in addition to the primary drive-controlled motor. With all four motors running simultaneous and at their highest speed, the system output can reach up to 400%. With this Auxiliary Motor Control system, the drive will automatically start up an additional motor as soon as demand for the product being made becomes too high for one motor to handle alone. In the same way, when demand diminishes, the system will automatically shut down unnecessary motors. The standard communication systems for the 22C-D142A103 are Modbus RTU, P1-Floor Level Network (FLN), Metasys N2, and Drive Serial Interface DSI. However, if desired, the user will be able to apply the following additional protocols, which are also supported by this module: LonWorks, BACnet, ControlNet, EtherNet/IP, and DeviceNet. The output rating of this unit is 75 kW at 100 HorsePower. Its 142 Amps can be held at 45 degrees Celsius but drops to 128 Amps at 50 degrees Celsius. With an input voltage range of 340 to 528 Volts, this module has an input rating of 124.8 kV and 150 input Amps and has a power dissipation of 2043 Open IP20 Watts. Its overall rating is for an IP30, NEMA/UL Type 1 enclosure. The E sized frame requires wiring that is larger than 1/0 AWG (53.5 millimeters squared) and smaller than 4/0 AWG (107.2 millimeters squared), in order for it to fit. It is not recommended to facilitate a torque any higher than 19.5 N-m or 173 pounds on an inch. This unit SHOULD NOT be mounted at an altitude any higher than 3300 feet (or 1000 meters) and should be kept out of corrosive environments and not exposed to dust.

The Allen-Bradley 22C-D142A103 is an Allen-Bradley Adjustable Frequency AC drive that is specifically designed for use in industrial fan and pump applications. This drive is capable of Sinusoidal Pulse Width Modulation (PWM) and Volts/Hertz (V/Hz) control method. Also, the 22C-D142A103 is equipped with built-in Proportional + Integral + Derivative (PID) functionality, allowing the drive to act as a stand-alone controller.

Additionally, the 22C-D142A103 is also capable of auxiliary motor control. With this control, up to three (3) line-started motors can be connected to the drive. This is the typical arrangement in most fan and pump applications as these applications typically use a duplex or triplex pump that sets operating in Duty/Standby/Spare setup. With Auxiliary motor control, only one (1) drive is needed to control all three (3) motors. Additionally, the same feature is capable of Auto-Swap function. Wherein periodic motor swapping can be initiated based on runtime. With this, motor wear and tear can be equally distributed.

The 22C-D142A103 has an input voltage requirement of 340-528 Volts AC, 3-Phase, and provides an output voltage of 0-460 Volts AC, 3-Phase. It delivers an output frequency of 0-320 Hertz which is fully programmable and an output current of 142 Amperes @ 45 degrees Celsius, 128 Amperes @ 50 degrees Celsius, and a power of 100.0 Horsepower or 75.0 Kilowatts. It also has a carrier frequency of 2-8 Kilohertz as this drive is a Frame E sized drive.

Aside from implementing speed control for industrial fan and pump applications, the 22C-D142A103 can also be used for lowering energy consumption while serving its primary purpose. It can implement acceleration and deceleration profiles; multiple stop modes such as Ramp, Coast, DC-Brake, Ramp-to-Hold and S-curve. These settings effectively reduce the generation of inrush current and lessens the effects of sudden motor energization and de-energization command.

FAQ for 22C-D142A103

What are this module’s communication options?


This module has a number of communication systems, including Modbus RTU, P1-Floor Level Network (FLN), Metasys N2, and Drive Serial Interface DSI.

Does the 22C-D142A103 have a flange mount?


No, this module does not require a flange mount.

What is this module’s power dissipation?


This module has a 2043 Open IP20 Watt power dissipation.

Can this module be purchased with a warranty?


Yes, the 22C-D142A103 comes with a free one-year warranty from DO Supply, Inc.

Where can I send the 22C-D142A103 to be repaired?


DO Supply, Inc. offers a variety of repair services for the 22C-D142A103.

What type of input voltage does this module have?


The 22C-D142A103 has an input voltage of 340 to 528 Volts AC.

What is the output power and output current ratings of the 22C-D142A103?


The 25C-D010N104 has an output current and power ratings of 142 A @ 45o C and 128 @ 50o C and output power ratings of 100 Horsepower or 75 kW.

Is the 22C-D142A103 capable of PID control?


Yes. The 22C-D142A103 has built-in PID functionality.

What is the control method supported by the 22C-D142A103?


The 22C-D142A103 is capable of Volts / Hertz (V/Hz) and Sinusoidal Pulse Width Modulation (PWM).

Technical Description of 22C-D142A103

The 22C-D142A103 is an Allen Bradley PowerFlex 400 AC Drive at a 75 KW (100 HP) rating. The 22C-D142A103 Powerflex 400 has an IP30 NEMA/UL Type 1 enclosure. "E" Frame Size, Fan and Pump Drive Type.

Repair Services for 22C-D142A103

Type Lead Time Price Action
Repair Service 2-4 weeks $13009.25cartAdd to Cart

Our highly skilled technicians can repair your 22C-D142A103. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions for 22C-D142A103

Please refer to the manual for more information about the 22C-D142A103 such as the wiring diagrams, data sheets, firmware information and migration or obsolescence details.

Revision Part # Also Known as Availability
22C-D142A103 Ser A
22C-D142A103/A, Series A, Rev A Request Quote
Common misspellings:
  • 22C-Dl42A103
  • 22C-D1A2A103
  • 22C-D142Al03
  • 22C-D142A1o3
  • 22CD142A103

Reviews for 22C-D142A103

Internal Review

"The 22C-D142A103 is a PowerFlex 400 Adjustable Frequency AC drive for Fan and Pump applications. This drive is used for medium sized motors as the 22C-D142A103 delivers an applicable motor output current of 142 A @ 45o C and 128 @ 50o C and output power ratings of 100 Horsepower or 75 kW. Specifically used for fan and pump applications, this drive is capable of Sinusoidal PWM and Volts / Hertz control which are the control method needed to implement motor operation in the specific niche it serves. " -DO Supply Tech

Dimensions For 22C-D142A103

Size
Input Type
Panel Cutout Height in mm
Panel Cutout Width in mm
Terminal Height in mm
Terminal Width in mm
Terminal Overall Depth in mm
Terminal Mounted Depth in mm
