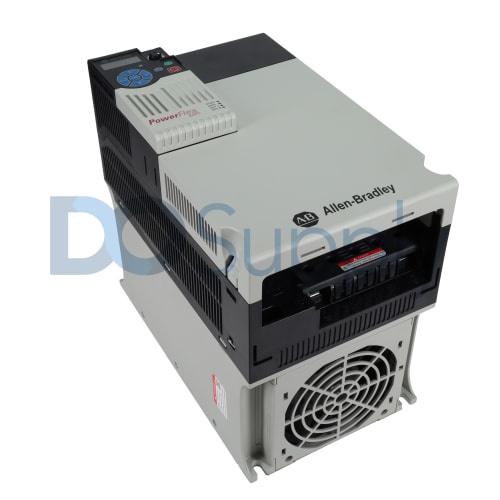

25A-B062N104

Revisions: Ser A
Description: The Allen-Bradley 25A-B062N104 PowerFlex 523 adjustable frequency AC drive. This drive features an input voltage range of 200-240VAC, 3-phase and delivers output voltage of 0-230VAC, 3-Phase, with rated Current of 62.1 A and Power of 15 kW (20 HP) for normal and 11 kW (15 HP) for heavy duty operation. It has an integral RS485 communication interface. It is capable of Volts / Hertz and Sensorless Vector Control (SVC) method.
Available Now
Request a quote for 25A-B062N104

Description: The Allen-Bradley 25A-B062N104 PowerFlex 523 adjustable frequency AC drive. This drive features an input voltage range of 200-240VAC, 3-phase and delivers output voltage of 0-230VAC, 3-Phase, with rated Current of 62.1 A and Power of 15 kW (20 HP) for normal and 11 kW (15 HP) for heavy duty operation. It has an integral RS485 communication interface. It is capable of Volts / Hertz and Sensorless Vector Control (SVC) method.

Preowned

Includes a 1-Year DO Supply warranty.

DO Supply is not an authorized distributor for Allen Bradley.

top legal disclaimer
disclaimer
credit cards
better business bureau
Revisions: Ser A

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via UPS, DHL, and TNT
Repairs: We offer repair service for the 25A-B062N104.
Exchange: Exchange credit for your defective unit available.
Conditions: We sell preowned surplus and refurbished parts.

To speak to a sales representative for pricing & lead time:


Rated 4.3 with 7 reviews

    Technical Specifications for 25A-B062N104

ManufacturerRockwell Automation
Part Number/Catalog No.25A-B062N104
Output Current62.1 A
BrandAllen-Bradley
Product Family:PowerFlex 523 Adjustable Frequency AC Drive
Input Voltage:200-240VAC
Input Phase:3-Phase
Output Voltage:0-230VAC
Output Power:15 kW (20 HP) for normal duty; 11 kW (15 HP) for heavy duty;
I/O:Discrete Inputs: Five (5) Inputs Discrete Outputs: One (1) Form C Contacts Analog Input: One (1) Analog Input Analog output: One (1) analog output
InstallationPanel Mount
Enclosure Rating:IP20 / NEMA UL Open Type
Frame:E
Control Method:Volts / Hertz Control; Sensorless Vector Control
Built-in communication port:RS485
Optional communication protocols:ProfiBus; Ethernet; DeviceNet;
SeriesPowerFlex 523
VoltageThree Phase, 240 VAC
Enclosure TypeIP20 NEMA / Open Type
Interface ModuleStandard
Frame SizeFrame E
EMC Filtering OptionNo Filtering
ManufacturerRockwell Automation
Part Number/Catalog No.25A-B062N104
Output Current62.1 A
BrandAllen-Bradley
Product Family:PowerFlex 523 Adjustable Frequency AC Drive
Input Voltage:200-240VAC
Input Phase:3-Phase
Output Voltage:0-230VAC
Output Power:15 kW (20 HP) for normal duty; 11 kW (15 HP) for heavy duty;
I/O:Discrete Inputs: Five (5) Inputs Discrete Outputs: One (1) Form C Contacts Analog Input: One (1) Analog Input Analog output: One (1) analog output
InstallationPanel Mount
Enclosure Rating:IP20 / NEMA UL Open Type
Frame:E
Control Method:Volts / Hertz Control; Sensorless Vector Control
Built-in communication port:RS485
Optional communication protocols:ProfiBus; Ethernet; DeviceNet;
SeriesPowerFlex 523
VoltageThree Phase, 240 VAC
Enclosure TypeIP20 NEMA / Open Type
Interface ModuleStandard
Frame SizeFrame E
EMC Filtering OptionNo Filtering
s

About 25A-B062N104

The Allen-Bradley 25A-B062N104 is an Adjustable Frequency AC Drive from the PowerFlex 523 Product family. Adjustable Frequency Drives or more popularly known as Variable Frequency Drive (VFD), Variable Speed Drive (VSD) or Inverter are electronic devices that is mainly used to perform basic motor controls such as well as provide speed control capability of an AC motor.

This drive is capable of implementing basic motor controls such as Start / Stop, Forward / Reverse and Jog or inching control. It is also capable of speed control by varying the output frequency towards the motor, protective acceleration / deceleration sequence, speed ramp-up and ramp-down and efficient runtime and idle operation.

The 25A-B062N104 operates when supplied with the appropriate voltage. Specifically, it is designed to accept 3-Phase, 200-240VAC input voltage range. It delivers output ratings of 0-230VAC, 3-Phase, with rated Current of 62.1 A and Power of 15 kW (20 HP) for normal and 11 kW (15 HP) for heavy duty operation. It has a fully-programmable output frequency of 0-500 Hz.

Aside from Sensorless Vector and Vols / Hertz control, the 25A-B062N104 is capable of Economizer SVC motor control. It has a carrier frequency of 2-16 kHz, Drive rating based on 4 kHz. Individual control method performance includes ±1% of base speed across a 60:1 speed range for Volts / Hertz; ±0.5% of base speed across a 100:1 speed range for both Sensorless Vector and Economizer Sensorless Vector control. This drive has an efficiency of 97.5% and support a variety of stop modes such as Ramp, Coast, DC-Brake, and Ramp-to-Stop.

It is capable of Volts per hertz and SVC (Sensorless Vector Control) and supports one integral PID loop. The 25A-B062N104 AC drive has an innovative modular design. Both power modules and control modules are detachable, a feature that provides users with the possibility of configuring control modules while a power module is being installed on the machine. Furthermore, the control module is standard and can be used through all power ranges of the PowerFlex series, which reduces spare parts stocks. An HMI interface on the 25A-B062N10 is LCD display (multi-language), combined with the integral keypad, provides a user with a basic configuration tool. It may also be configured using the Connected Components Workbench (CCW) software as well as the Studio 500 Logix Designer software is another applicable software for integration into the Logix system. The 25A-B062N104 module is equipped with one analog input (voltage or current), five digital inputs, one analog output (jumper for 0 to 10 Volts or 4 to 20 mA), and one relay output. Its communication is conducted over an integral RS485/DSI port (or an optional card for dual port EtherNet/IP). Its overload rating information is as follows: Normal duty has 110% overload during 1 minute or 150% for 3 seconds, while its heavy-duty mode has 150% overload for 1 minute or 180% overload (200% programmable) for 3 seconds. The product dimensions are 185 x 300 x 279 millimeters (7.28 x 11.81 x 10.98 inches), and its weight is approximated at 12.9 kilograms (28.4 pounds).

FAQ for 25A-B062N104

What are the control methods supported by the 25A-B062N104?


The 225A-B062N104 is capable of Sensorless Vector Control (SVC), Economizer SVC, and Volts per Hertz (V/F) control methods.

What is the overload capacity of the 25A-B062N104?


Intermittent overload capacities are 110% Overload capability for up to 60 s, 150% for up to 3s and 150% Overload capability for up to 60 s, 180% for up to 3 s (200% programmable) for Heavy duty operation.

What are the available stop modes to the 25A-B032N104?


Available programmable motor stop modes are Ramp, Coast, DC-Brake, and Ramp- to-Stop.

Technical Description of 25A-B062N104

Allen-Bradley PowerFlex 523 AC Drive has Three Phase, 240 VAC voltage and 62.1 Amperes Output

Repair Services for 25A-B062N104

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your 25A-B062N104. All of our repairs come with a 1 Year Warranty. Please contact us for additional information about our repairs process.

Revisions for 25A-B062N104

Please refer to the manual for more information about the 25A-B062N104 such as the wiring diagrams, data sheets and migration or obsolescence details.

Revision Part # Also Known as Availability
25A-B062N104 Ser A
25A-B062N104/A, Series A, Rev A Request Quote
Common misspellings:
  • 25A-8062N104
  • 25A-Bo62N104
  • 25A-B062Nl04
  • 25A-B062N1o4
  • 25A-B062N10A
  • 25AB062N104

Reviews for 25A-B062N104

Internal Review

"The 25A-B062N104 is an Allen-Bradley PowerFlex 523 adjustable Frequency AC Drive. This drive features dual output ratings such as 5 kW (20 HP) for normal and 11 kW (15 HP) for heavy duty operation. Compare to other drives that is part of the PowerFlex 4, 40 and 40 M, PowerFlex 523, including the 25A-B062N104 is capable of high-level of integration via Studio 5000 Logix designer. This integration is called premiere integration wherein drive parameters can be directly integrated to Programmable Logic Controllers (PLC). " -DO Supply Tech

Dimensions For 25A-B062N104

Size
Input Type
Panel Cutout Height in mm
Panel Cutout Width in mm
Terminal Height in mm
Terminal Width in mm
Terminal Overall Depth in mm
Terminal Mounted Depth in mm

Dimensions For 25A-B062N104

Width (w/Mounting Hardware) 7.28 in. (185.0 mm)
Height (w/Mounting Hardware) 11.81 in. (300.0 mm)
Depth 10.98 in. (279.0 mm)
Mounting Bracket Hole Width 6.30 in. (160.0 mm)
Mounting Bracket Hole Height 11.02 in. (280.0 mm)
Weight 28.4 lb (12.9 kg)

Resolutions For 25A-B062N104

About
